Quick 861DW 861X 881D 1300W hot air rework station

Product description

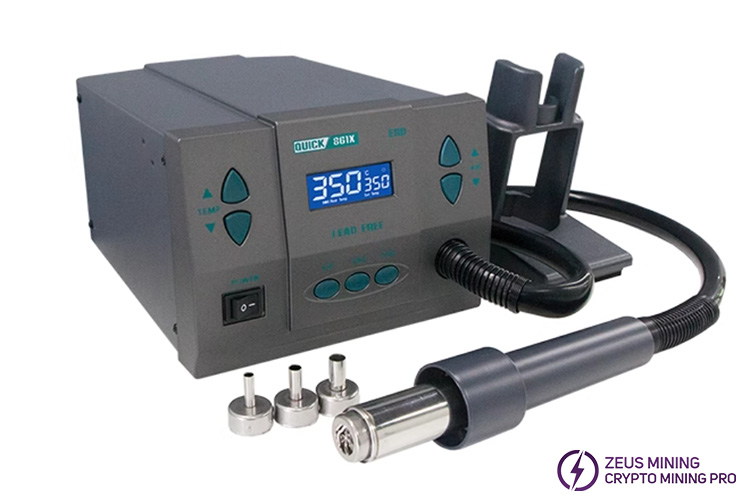

Quick 861X 220V rework station 1300W is a BGA welding hot air ultra-powerful rework station and a professional circuit board BGA desoldering tool. Adopting the latest design concept of QUICK, large-screen LCD display, thin and light, low power consumption, adjustable brightness, independent control of temperature and air volume, encoder adjustment, more intelligent, intuitive display of digital temperature/air volume calibration, convenient and fast.

Note: 881D has been discontinued. It is recommended to choose 861DW 1000W or 861X 1300W desoldering stations, which have the same functions. Please select the power cord plug when purchasing this product. We will give you an International universal socket adapter for free according to your choice.

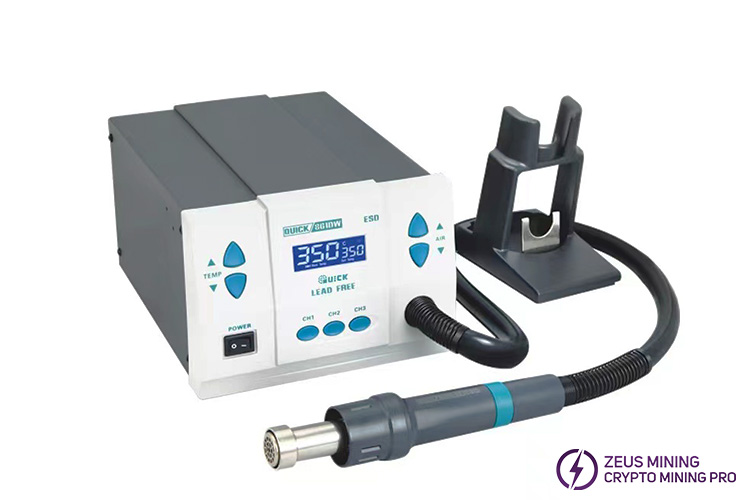

Quick 861DW 1000W digital rework station is a 1000W chip-level hot air desoldering station, which is durable. The heat gun adopts a brushless vortex fan with low noise, large air volume, low air pressure, and long service life. The heat gun is equipped with an intelligent control board, which can accurately control the temperature in a closed loop and protect the circuit safely. Parameter settings can be adjusted, quickly set and quickly recalled.

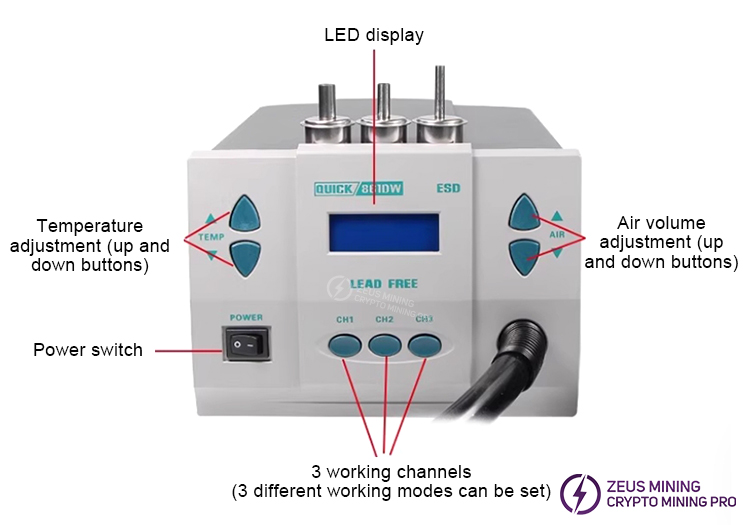

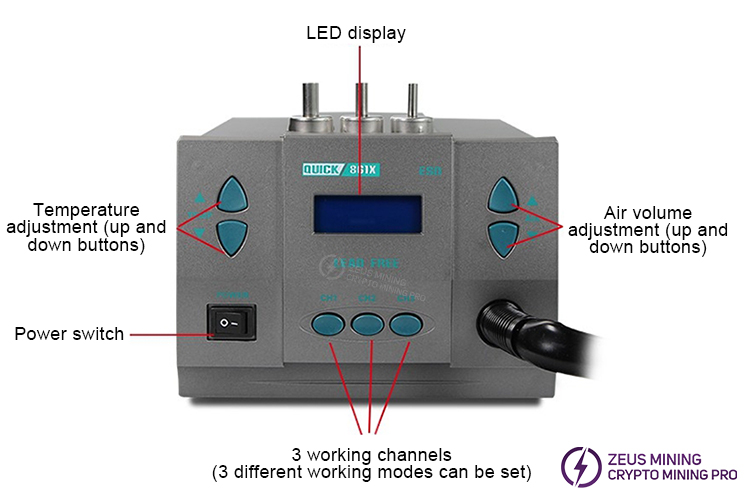

Quick 861DW 861X function introduction:

1. It has three working channels, CH1, CH2, and CH3, and the air volume and temperature of each channel can be set.

2. It has password protection and a key lock function.

3. Easy real-time operation with magnetic switch control. When the handle is placed on the handle stand, it immediately falls asleep.

4. It has an automatic sleep function and can set parameters in the sleep state.

5. Sensor closed loop, microcomputer zero-crossing trigger temperature control, high power, fast heating speed, convenient and accurate temperature adjustment, unaffected by air volume.

6. Using a brushless vortex fan, the airflow is adjustable and has a large range, which can be used for various purposes.

7. The system is equipped with an automatic large-air volume cooling function to extend the life of the heating element and protect the hot air handle.

QUICK 861X 861DW parameter comparison:

Click to view the article to understand: How to use the 861X 1300W hot air rework station for ASIC miner repair?

Product display

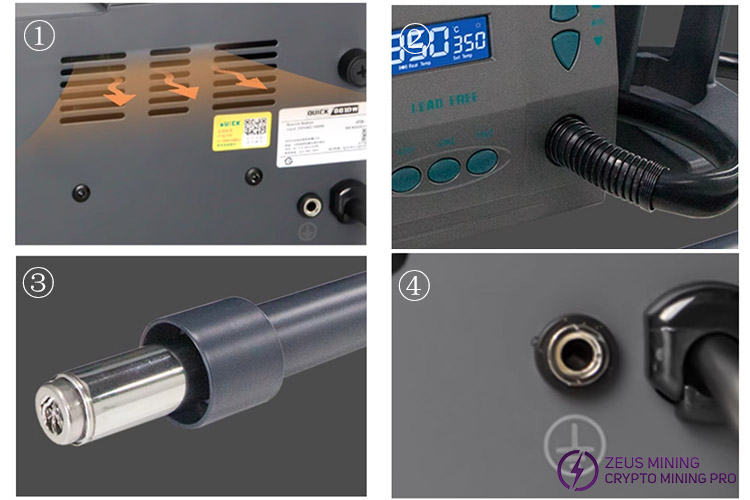

Quick 861DW 861X hot air rework station local details display:

① Heat dissipation grille, air circulation, effective heat dissipation;

② Anti-bending spring, protect silicone tube, anti-wear;

③ Anti-scalding cover, safe and reasonable to prevent scalding;

④ ESD static control, ensure static protection safety.

Product composition

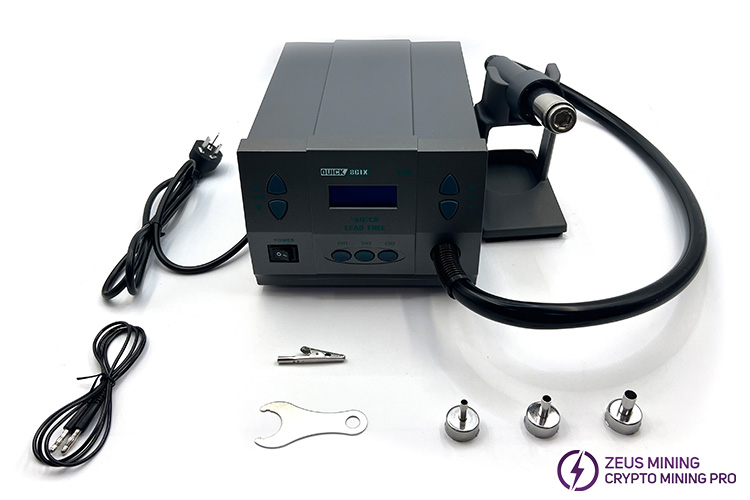

861X hot air gun soldering station part lists:

Main unit + power cord * 1

Heat gun handle * 1

Air gun stand * 1

Air nozzle * 3

Ground wire * 1

Wrench * 1

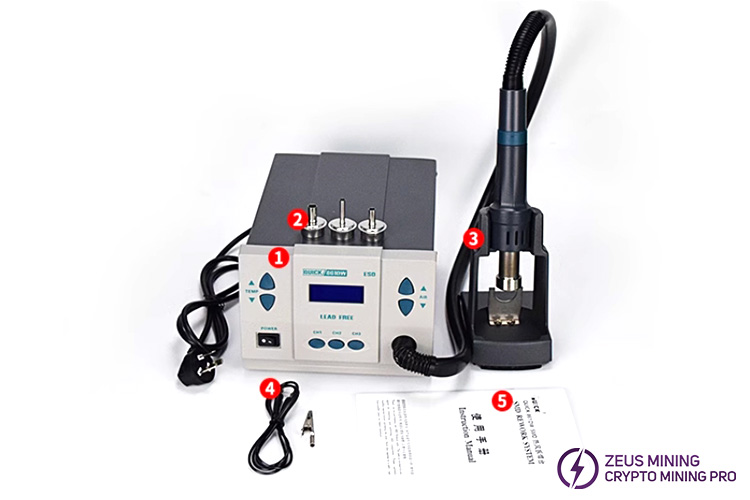

Quick 861DW 1000W digital rework station part lists:

Host * 1

Air nozzle * 3

Air gun stand * 1

Ground wire * 1

Instruction manual * 1

Effect display

Quick 861DW 861X desoldering station applicable scenarios:

Applicable to Bitcoin miner (such as Antminer) chip replacement, BGA solder joint repair, circuit motherboard repair, and other scenarios, especially suitable for the desoldering needs of ASIC miner core components.
