FNIRSI DSO-TC3 3 in 1 handheld digital oscilloscope transistor tester

FNIRSI DSO-TC3 Oscilloscope 3-in-1 Handheld Oscilloscope &  Signal Generator & Transistor Tester

FNIRSI DSO-TC3 tester skillfully integrates digital oscilloscope, electronic component tester, signal generator, on-off test, voltage measurement, temperature and humidity measurement, infrared decoding, and other functions into one, equipped with 2.4-inch color dot matrix TFT the display screen, built-in rechargeable lithium battery, brings users more and more vital practical functions with a small size, and has good portability at the same time.

Product supporting list:

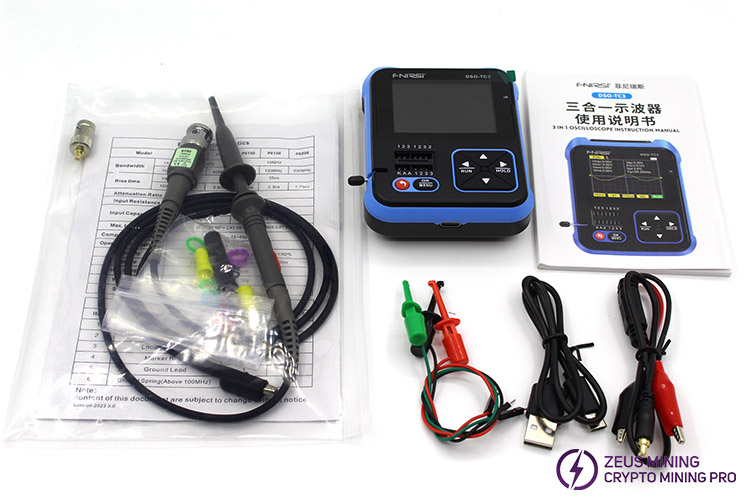

DSO-TC3 tester*1

Adapter*1

P6100 high voltage probe*1

Type-C charging cable*1

Test hook*3

Ordinary probe*1

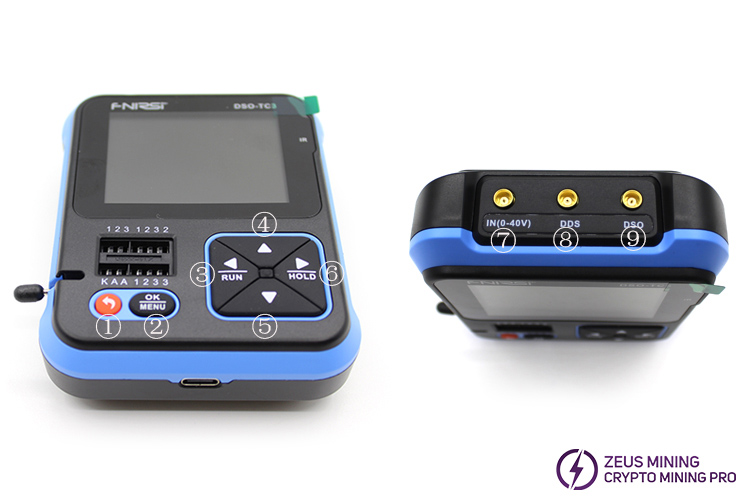

FNIRSI DSO-TC3 3 in 1 handheld digital oscilloscope transistor tester button port description:

① Return key

② Menu/OK key

③ Left key

④ Up key

⑤ Down key

⑥ Right key

⑦ IN(0-40V)

⑧ PWM

⑨ DSO

Product specifications and parameters:

The main parameters of the whole machine:

Toolbox function introduction:

Automatically analyze NEC protocol infrared code

Other function modes: including circuit continuity test, 0~40V input voltage measurement, DS18B20 temperature sensor measurement, DHT11 temperature and humidity sensor measurement, etc.

Digital oscilloscope mode parameters:

Oscilloscope function introduction:

Real-time sampling rate 10MS/s, bandwidth 500Khz;

Maximum measurement of 400V voltage signal;

With complete trigger function (automatic, single, regular);

Equipped with an efficient one-button AUTO. It can display the measured waveform without complicated adjustments.

Component test mode parameters:

Function introduction of transistor tester:

Automatically identify and measure various transistors, including NPN and PNP transistors, N-channel and P-channel field effect transistors, junction field effect transistors, diodes, dual diode thyristors, etc., and passive devices such as resistors, inductors, and capacitors.

Automatic detection of pin definitions.

Signal transmitter parameters:

Signal generator function introduction:

6 signal waveforms: sine wave, square wave, pulse wave, triangle wave, ramp, DC

Output frequency adjustable 1-100KHz

Adjustable output voltage 3.3V

Output duty cycle adjustable 0-100%
