L3+ test fixture

Product description

L3+ test fixture

LTC chip fixture/LTC test fixture L3+ suitable for Antminer L3, L3+, L3++

LTC Miner Test Fixture L3 + Hash board tester repair chip BM1485 chip. When repairing miners and hash boards, testing fixtures are indispensable. It can quickly locate faulty chips, accurately and efficiently, and greatly reduces inspection time. The principle of the test fixture is to send the test signal to the Hash board. If the chip of the dashboard is damaged, the test signal will stop transmitting on the chip. Through the prompt information on the computer screen, we can quickly find the chip, replace it, and quickly repair the hash board.

Attention please: the test fixtures sent by us by default are not coated with insulating paint. Please do not touch the powering unit with bare hands during the use of this product. Once touched, static electricity will be generated and the CPU will overheat and cannot be used. Apply insulating paint to the powering area, or wear electrostatic gloves before using this product.

Please note: Due to the long time to market for L3+ control boards, there is almost no brand new L3+ control board on the market. Therefore, the control board in our L3+ test fixture is a second-hand one. All L3+ test fixtures will be strictly tested before shipment and the products will be strictly packaged. When you receive the goods, if you find that the pin on the control board is bent, you can try to restore the pin gently.

Product parameters:

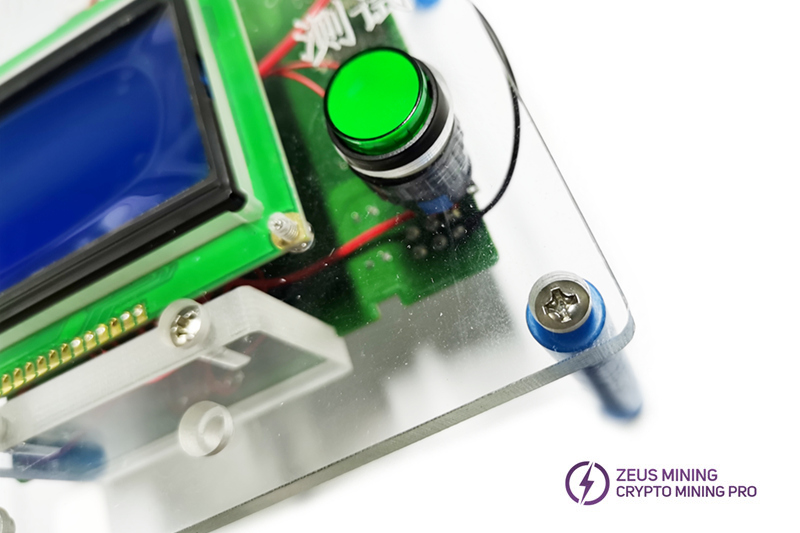

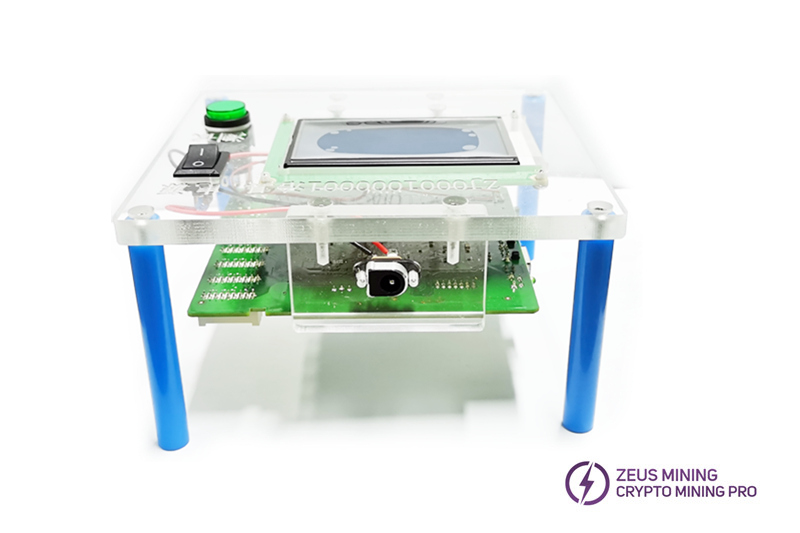

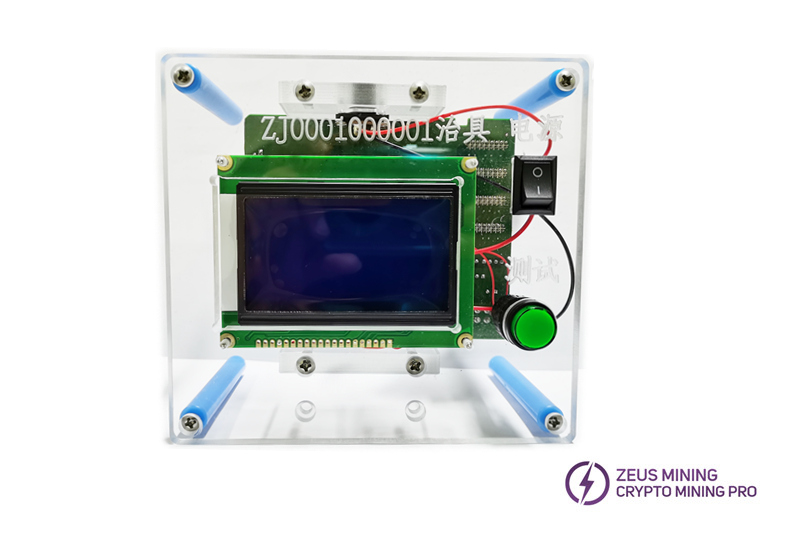

Product display

Product composition

Test fixture*1

TF card*1

Power adapter*1

18-pin data cable*1

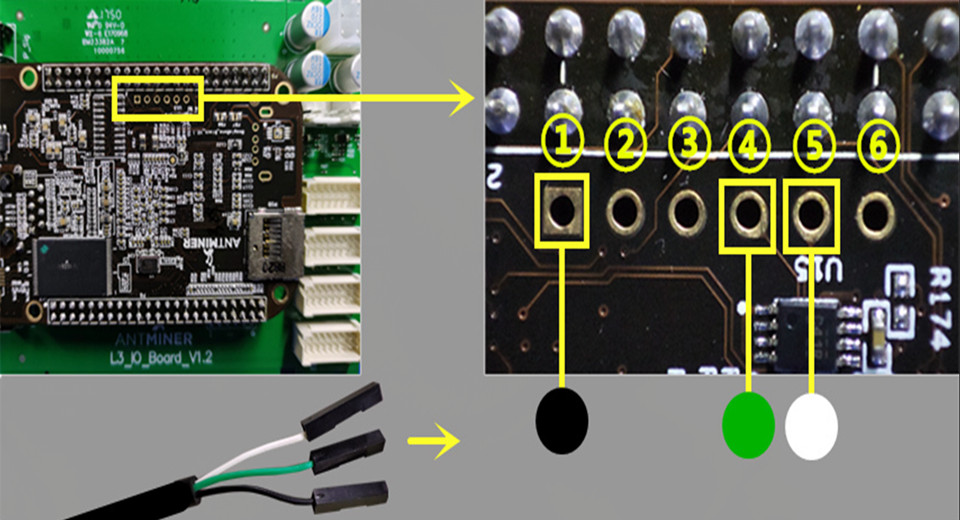

USB to TTL connection method:

If the circuit board does not have a connector, please solder it directly.

Important:

If the test fixture is damaged due to the following reasons, we do not provide after-sale service:

1. Connect to the network interface of the main control board of the test fixture to cause damage to the test fixture;

2. Change or delete files in SD/ TF card to cause damage to the test fixture.
