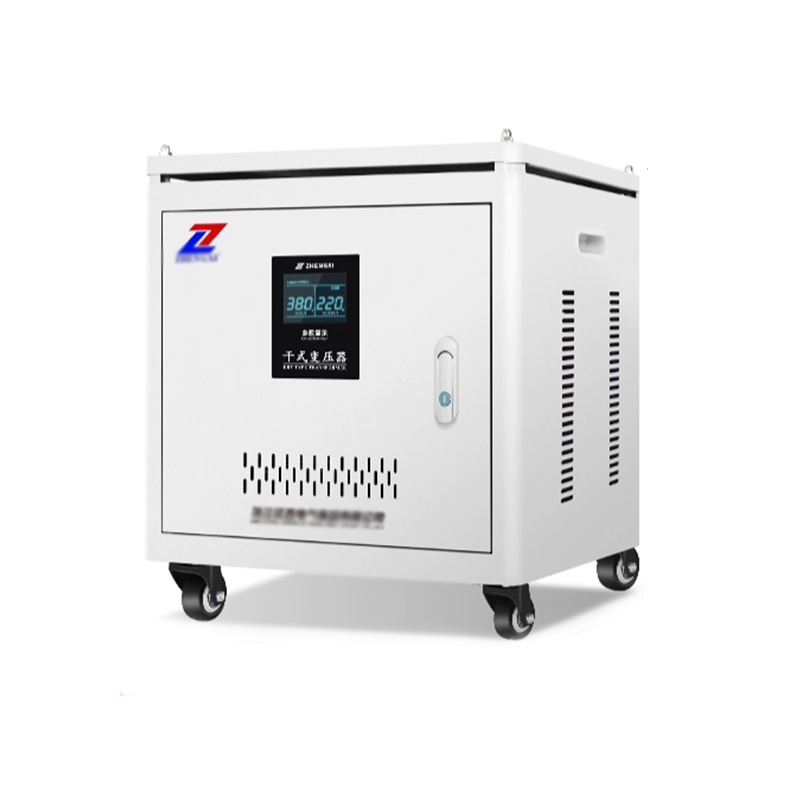

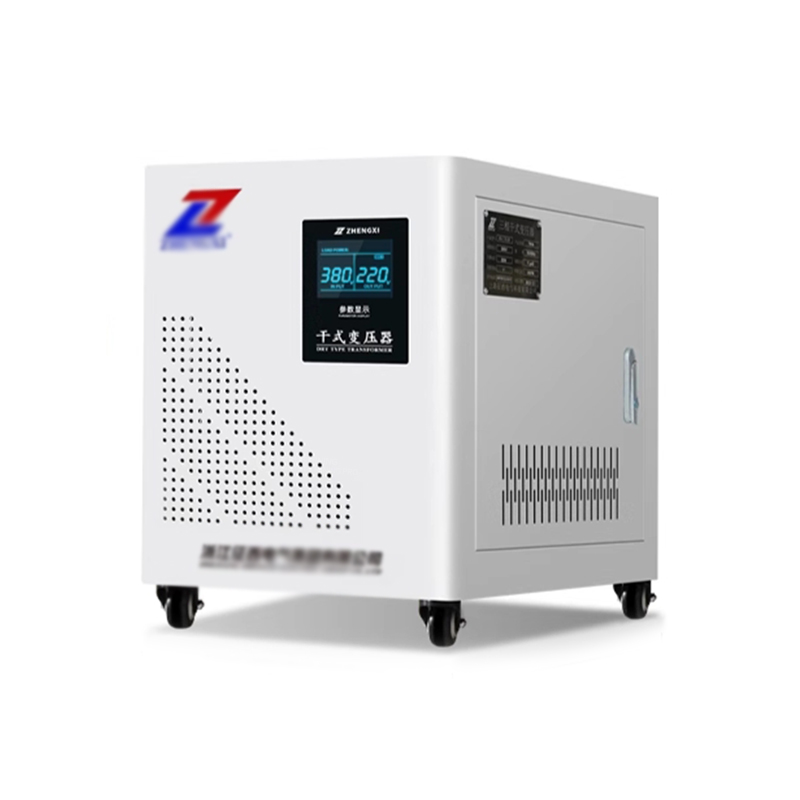

Zhengxi's three-phase transformer converts 380V to 220V, 690V, 415V, 660V, and 480V, and is an industrial-grade device designed for multi-scenario power conversion, featuring high-precision voltage regulation, electrical isolation, and reliable protection performance. It adopts all-copper wire winding and epoxy resin vacuum casting process. The winding is completely encapsulated in a fiberglass body that has fireproof, moisture-proof, and corrosion-resistant characteristics, reducing energy consumption and improving heat dissipation efficiency. Through its multi-tap winding design, the output voltage can be flexibly adjusted to meet the power requirements of various equipment in the Bitcoin farm.
3 Phase dry type transformer information description:
Product brand | ZHENGXI electric | Product name | Three-phase dry-type transformer |
Product model | QSG series | Number of phases | Three-phase |
Voltage accuracy | ±1% | Waveform distortion | No distortion (compared with input waveform) |
Voltage change rate | ≤1.5% | Insulation grade | Class F, high temperature resistance 150 degrees |
Insulation resistance | ≥150MΩ | Working efficiency | Inductive (auto-coupling) ≥99% |
Dielectric strength | 3000VA/1min | Overload capacity | Allows to exceed 1.2 times the rated load |
Cooling method | Dry air cooling | Temperature rise | ≤60°C |
Input voltage | Default 380V, 660V, 440V, 380V, 220V (customizable voltage) | ||
Output voltage | Default 220V, 1140V, 690V, 660V, 440V, 415V, 400V, 380V, 220V, 110V (customizable voltage) | ||

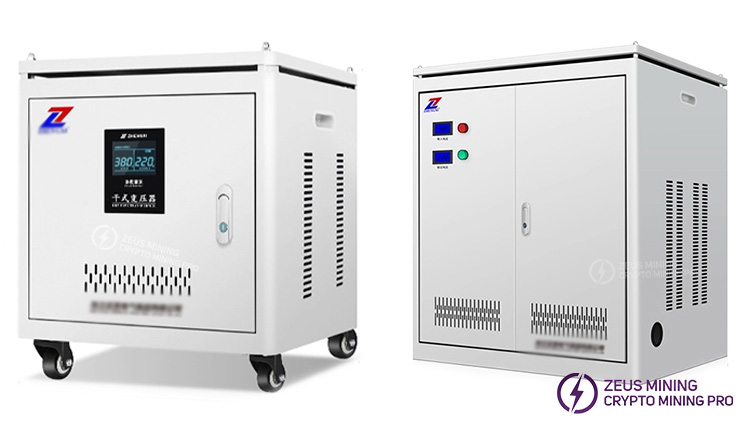

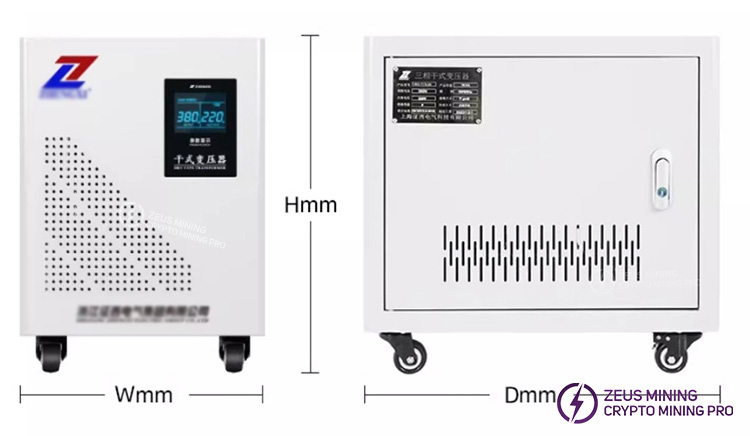

3 Phase transformer dimensions:

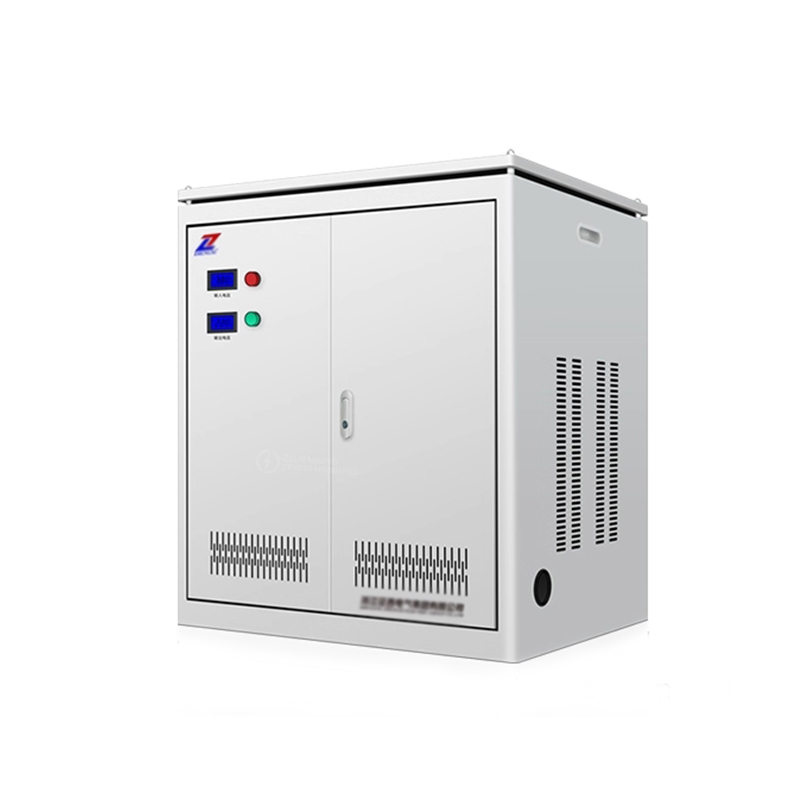

With case size:
Model | Dimensions WxDxH | Input voltage | Output voltage |
5KW | 300x390x330mm | Default 380V, 660V, 440V, 380V, 220V (customizable voltage) | Default 220V, 1140V, 690V, 660V, 440V, 415V, 400V, 380V, 220V, 110V (customizable voltage) |
8KW | 300x450x390mm | ||
10KW | 300x450x390mm | ||
15KW | 350x505x420mm | ||
20KW | 350x505x420mm | ||
25KW | 350x500x520mm | ||
30KW | 380x540x420mm | ||
40KW | 420x570x460mm | ||
50KW | 400x550x570mm | ||
60KW | 450x600x620mm | ||
70KW | 450x600x620mm | ||
80KW | 450x600x620mm |

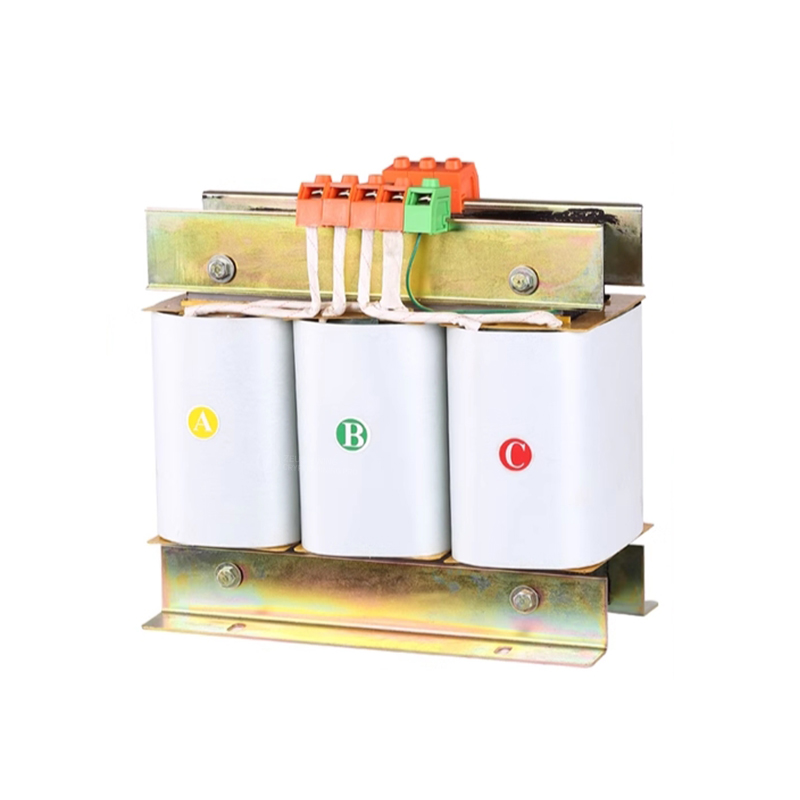

Without case size:
Model | Dimensions WxDxH | Input voltage | Output voltage |
0.5KW | 120x88x120mm | Default 380V, 660V, 440V, 380V, 220V (customizable voltage) | Default 220V, 1140V, 690V, 660V, 440V, 415V, 400V, 380V, 220V, 110V (customizable voltage) |
1KW | 180x120x155mm | ||
2KW | 180x140x155mm | ||
3KW | 240x145x205mm | ||
5KW | 240x155x205mm |
3 Phase electrical isolation power transformer features:

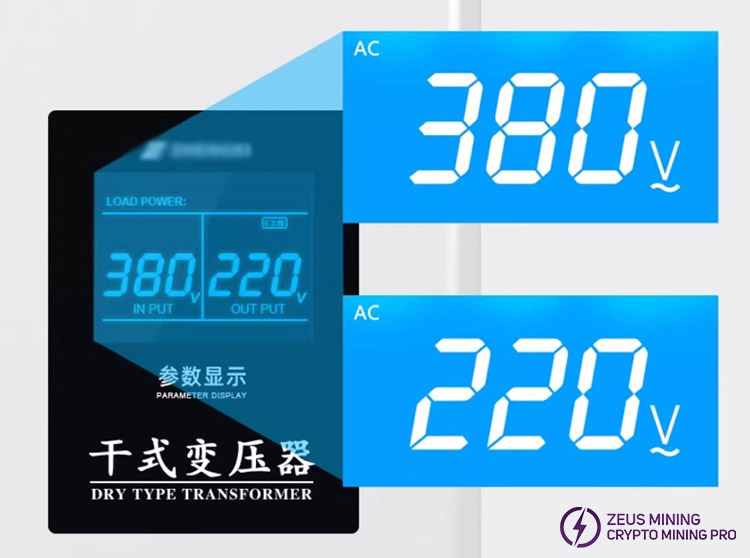

1. High-definition LCD screen
The input and output voltages are accurately displayed, the voltage transformation is clear at a glance, and the output voltage can also be accurately set.

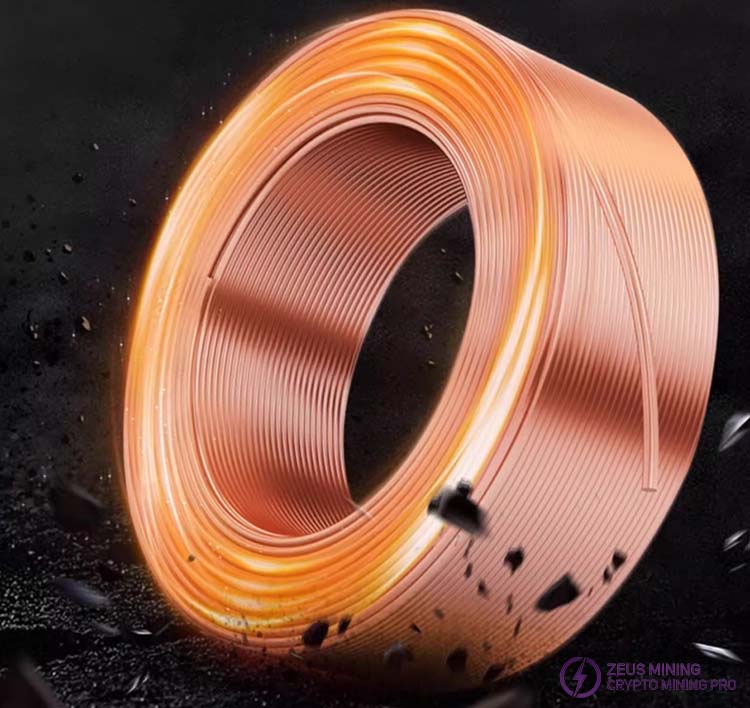

2. High-temperature resistant coil, no heat after long-term use
High-temperature-resistant enameled wire, featuring two layers of insulating paint, ultra-low line loss, and oxidation resistance.

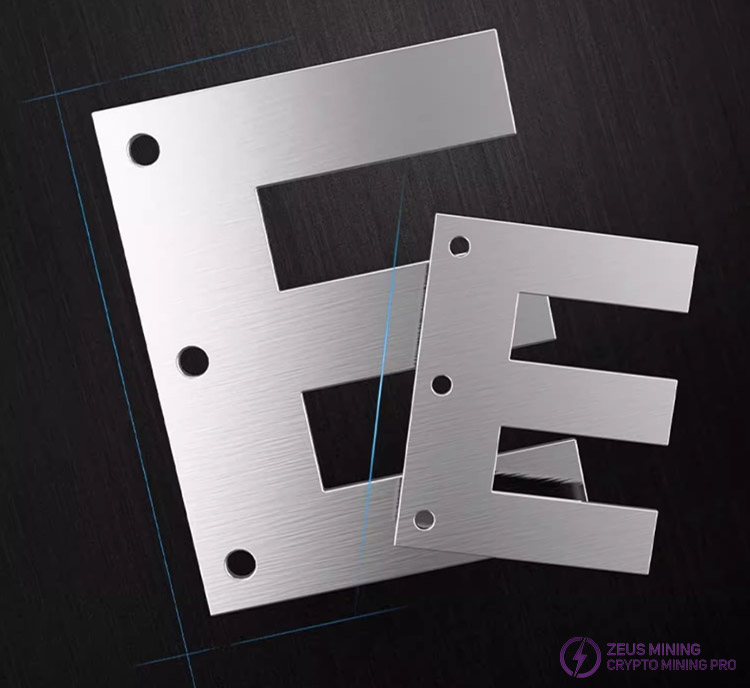

3. Cold rolled silicon steel sheets, capable and powerful
Cold-rolled, oriented silicon steel sheet is selected, which offers advantages such as a good heat dissipation system, low core loss, and excellent magnetization characteristics.

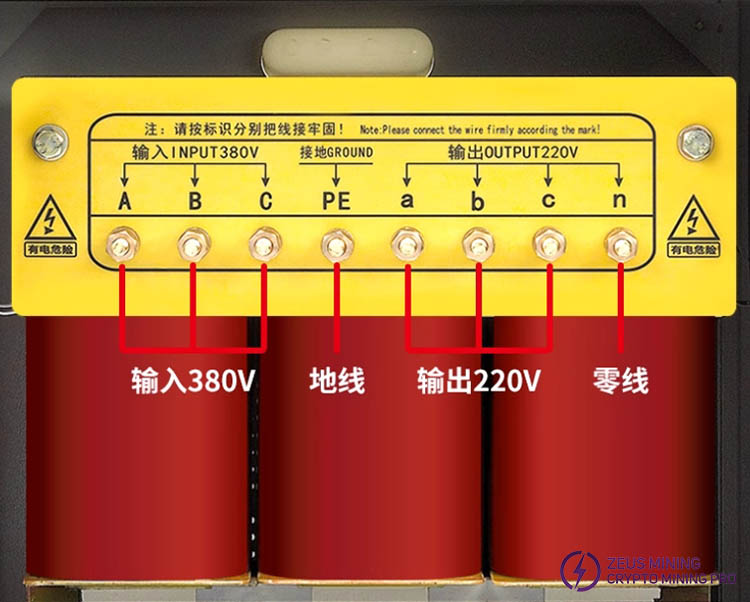

4. High-quality terminal blocks
The wiring steps are clearly marked, simple, convenient, and easy to operate.

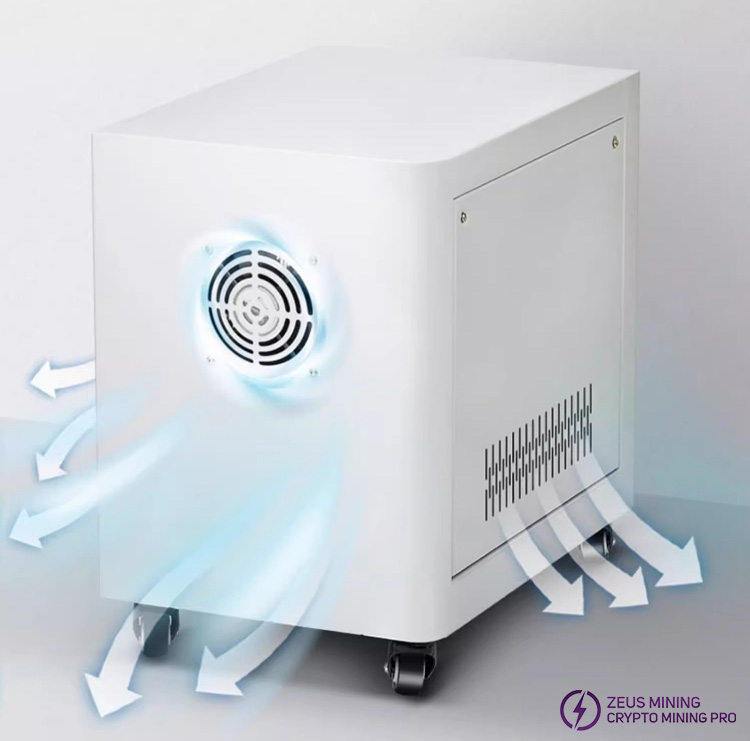

5. Double heat dissipation design, no heat accumulation, and long life
The multi-faceted heat dissipation grid design, combined with a high-strength heat dissipation fan at the back, ensures rapid heat dissipation and more stable machine operation.

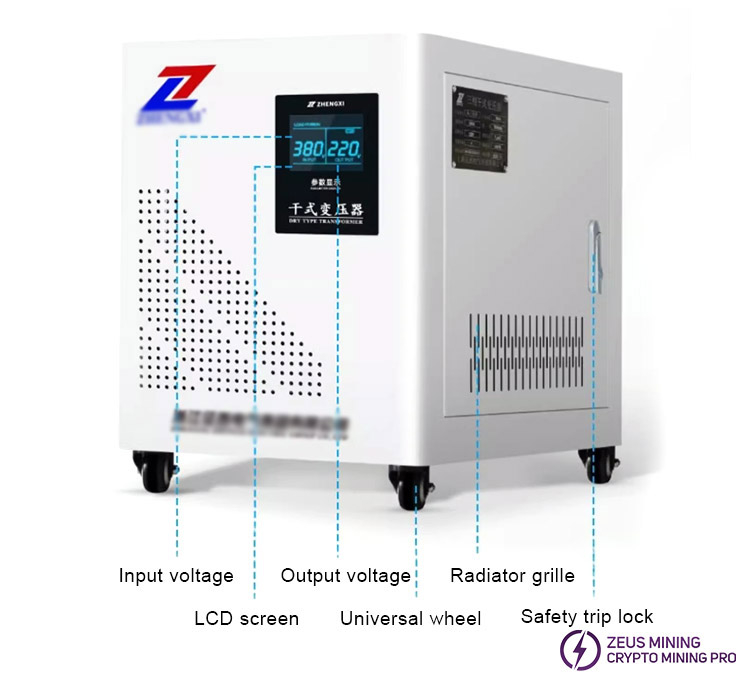

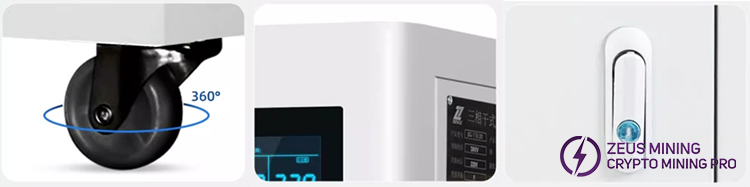

3 phase dry type voltage transformer details display:
1. Equipped with universal wheels for easy movement, 360° rotation, and easy and labor-saving.
2. The metal casing is used for heat dissipation on the outside, which is more durable.
3. Equipped with a safety door lock to prevent others from operating it by mistake.
