| Unit Price: | $ 1.8 |

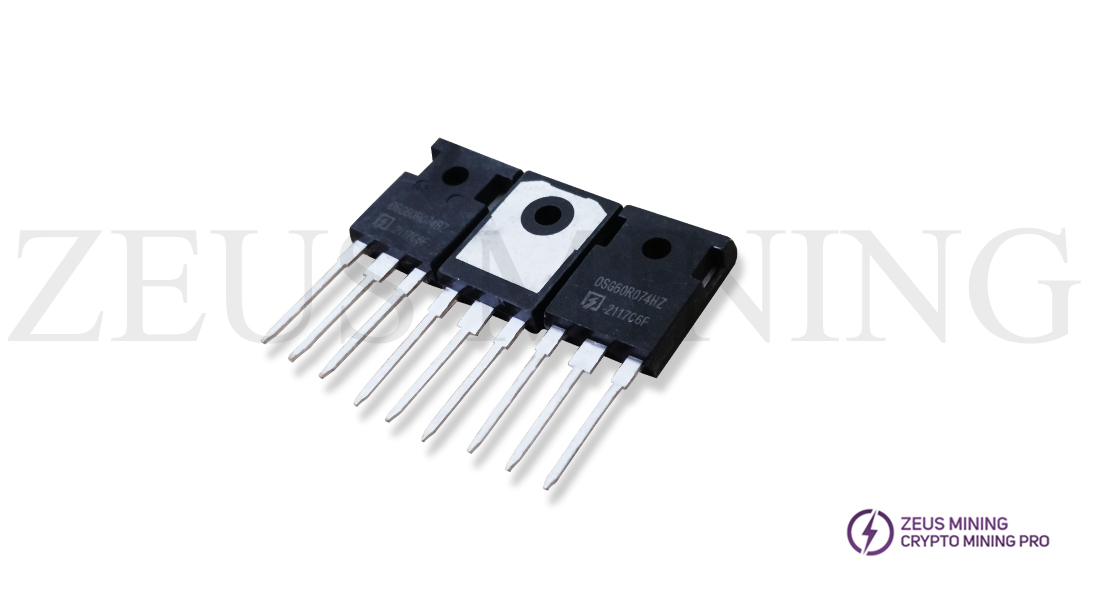

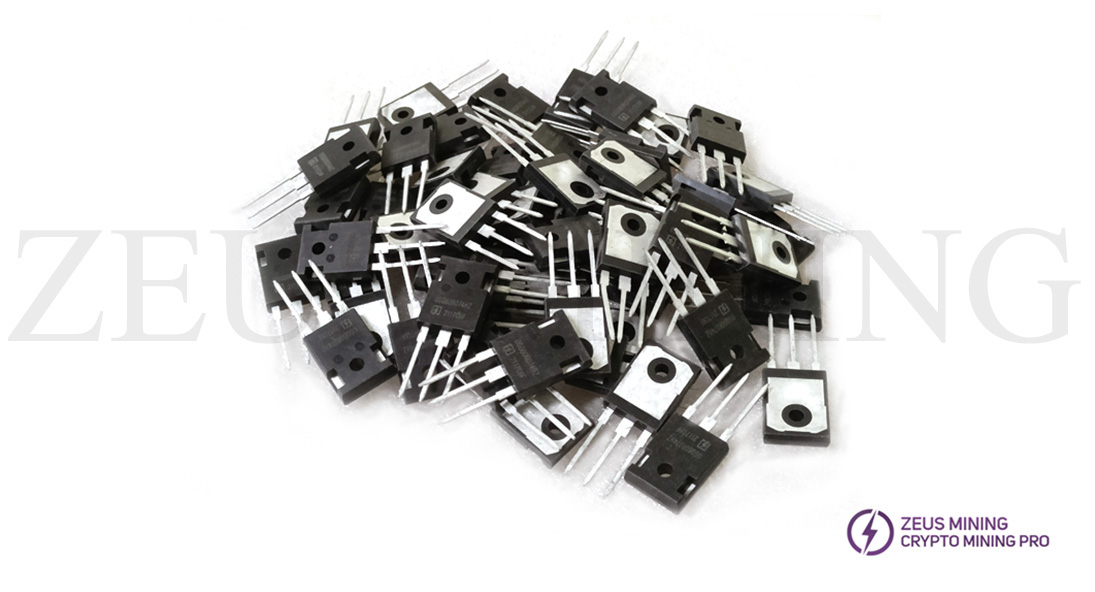

OSG60R074HZ Enhancement Mode N-Channel Power MOSFET
OSG60R074HZ High Power Switch Transistor is suitable for resonant switching topologies to reach higher efficiency, higher reliability, and a smaller form factor.
The OSG60R074HZ is a 600V high-voltage switching MOSFET in the PFC boost circuit of an ASIC miner power supply, providing reliable high-voltage input for subsequent power conversion and hash boards. When this device fails, mild degradation can cause a significant increase in the power supply's full-load temperature rise, internal high-frequency noise, continuous fluctuations in the miner's hashrate, frequent power reduction, and intermittent restarts/offline shutdowns. Severe DS shoot-through short circuits will instantly blow the input fuse, damaging the rectifier bridge, immediately triggering overcurrent protection lockup upon power-up, resulting in no 12V output and the entire device failing to start.
This is a brand-new original product, and the price may be more expensive than the substitute product, but the quality is more guaranteed; welcome to buy.
Low RDS(ON) & FOM
Extremely low switching loss
Excellent stability and uniformity
The ultra-fast and robust body diode
PC power
Telecom power
Server power
EV Charger
Motor driver
