| Unit Price: | $ 1.8 |

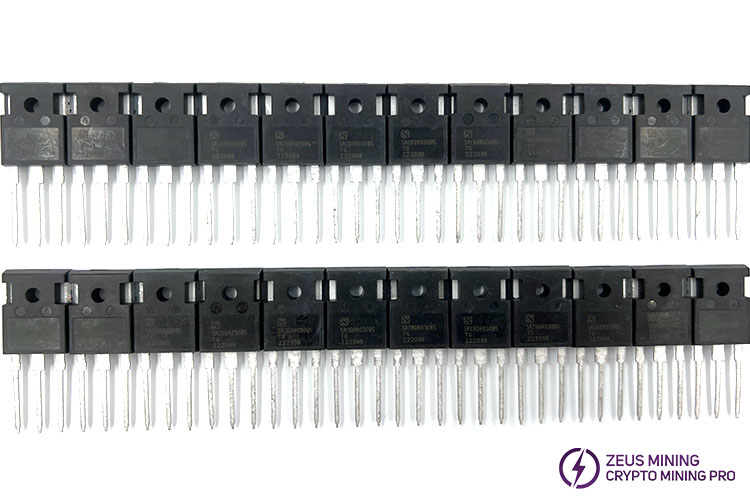

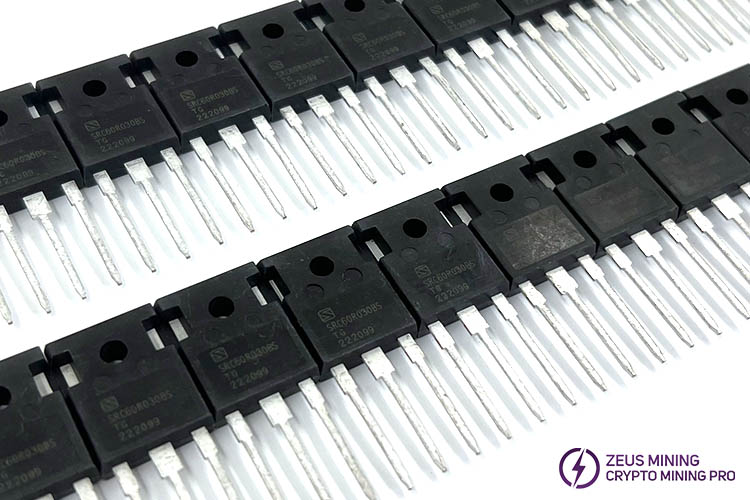

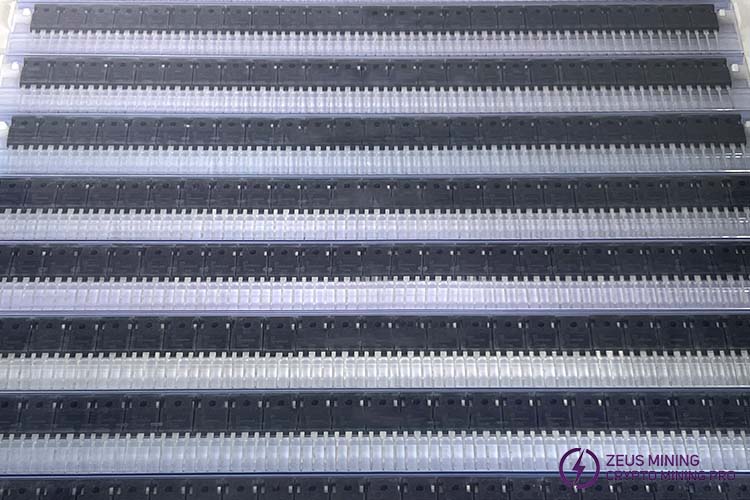

SRC60R030BS is a 30mΩ, 600V super-junction N-channel power MOSFET on the Whatsminer P221C and P222C power supply. Manufactured with advanced super-junction technology, it has extremely low on-resistance, low gate charge, and fast switching time, making it ideal for applications requiring superior power density and outstanding efficiency.
The SRC60R030BS has a breakdown voltage of 600V, high rugged avalanche characteristics, and comes in a TO-247 package.
The SRC60R030BS is a 600V high-voltage PFC power MOSFET, compatible with Whatsminer P221C and P222C power supply boost circuits. It repairs issues such as insufficient power boost, unstable hashrate, and overheating protection under full load, reducing mining downtime for maintenance.
Type designator: SRC60R030BS
Type of transistor: MOSFET
Type of control channel: N -Channel
Maximum power dissipation: 625W
Maximum drain-source voltage: 600V
Maximum gate-source voltage: 30V
Maximum gate-threshold voltage: 4.3V
Maximum drain current: 100A
Maximum junction temperature: 150°C
Total gate charge: 231nC
Rise time: 30nS
Drain-source capacitance: 482pF
Maximum drain-source on-state resistance: 0.03Ohm
Package: TO247
• Ultra-low RDS(ON) = 30mΩ @ VGS = 10V.
• Ultra-low gate charge, Qg=231nC (typ.)
• Intrinsic fast recovery body diode
• Fast switching capability
• Robust design for better EAS performance
• Non-automotive certification
• AC/DC power supply
• Electric car charger
• Server/Telecom
• Solar inverters
