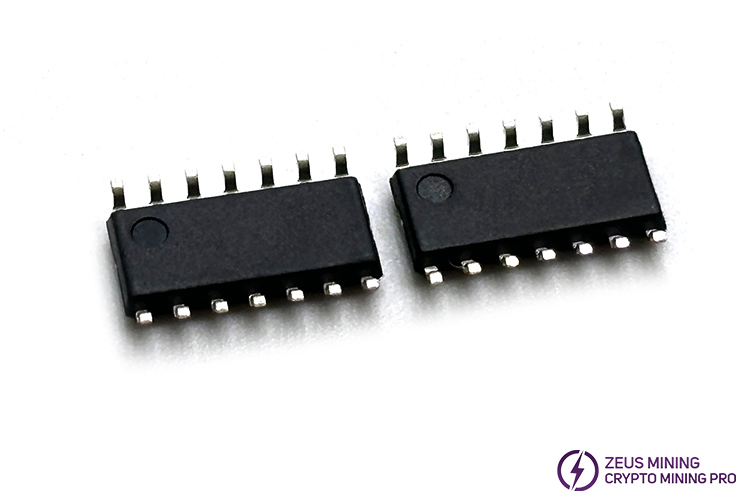

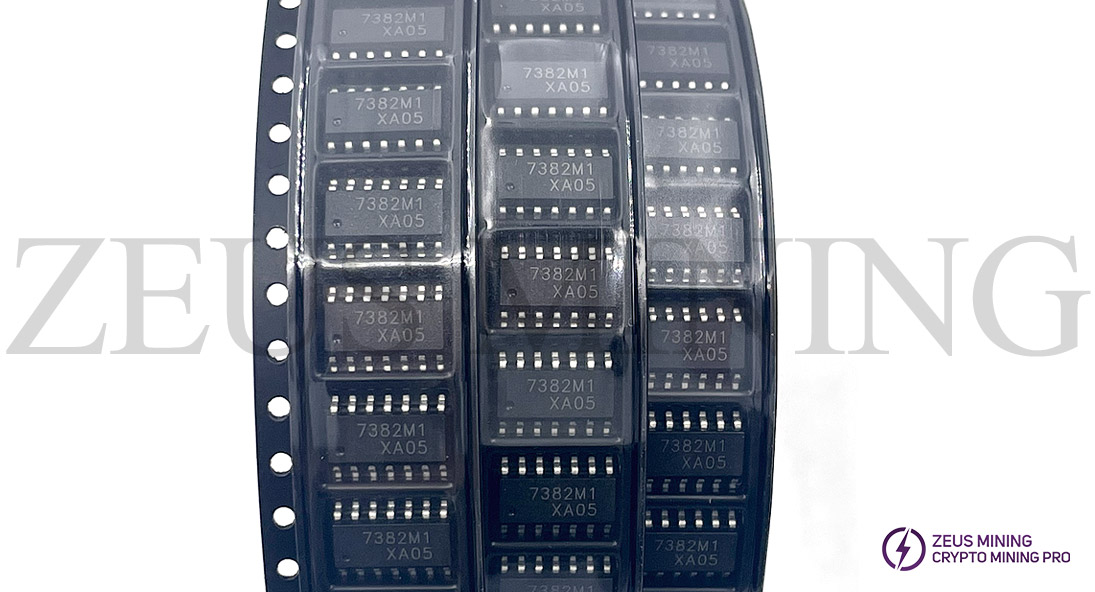

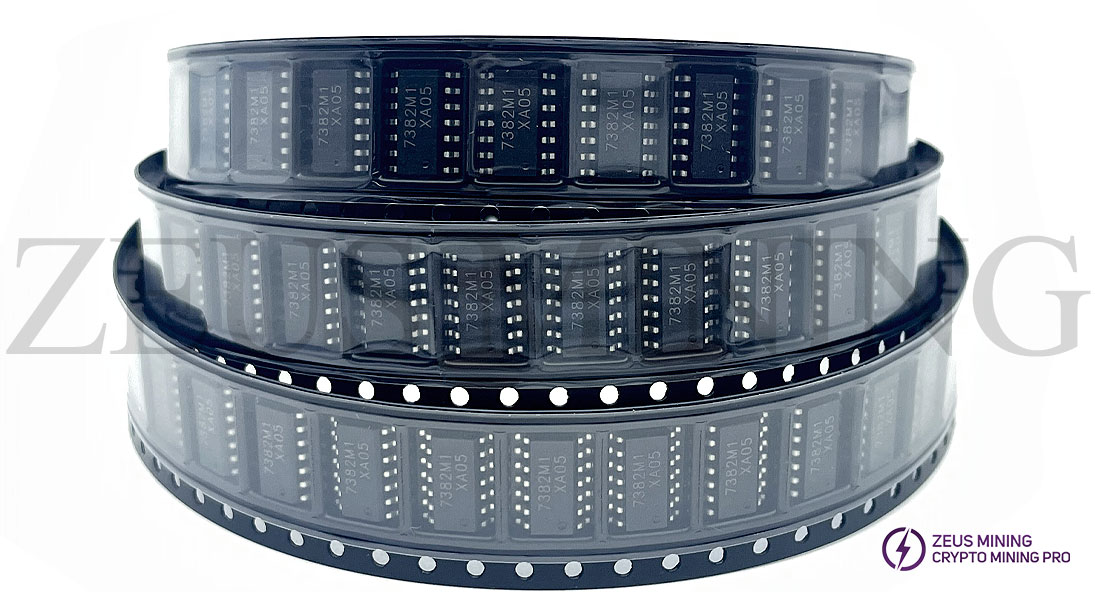

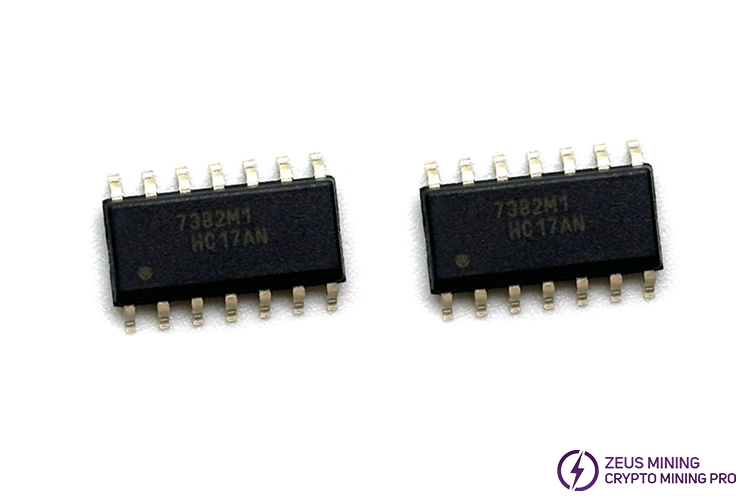

FAN7382M1 High-Side and Low-Side Gate Driver
The FAN7382M1 is a monolithic high and low side gate−drive IC can drive MOSFETs and IGBTs that operate up to +600 V. high−voltage process and common-mode noise canceling technique can provide high-side driver performance in high DV / DT noise environments Stable operation. The input logic level is compatible with standard TTL−series logic gates. UVLO circuits for both channels prevent malfunction when VCC or VBS is lower than the specified threshold voltage.
Features:
Floating channel designed for +600V bootstrap operation
Typical 350mA/650mA source/sink drive capability for two channels
Common Mode DV / DT Noise Cancellation Circuit
Extends allowed negative VS swing to -9V for signal propagation @ VCC = VBS = 15V
VCC and VBS supplies range from 10V to 20V
UVLO function for two channels
TTL Compatible Input Logic Threshold Levels
Matching propagation delays below 50 ns
The output is in phase with the input
Application:
Fluorescent lamp ballast, PDP scan driver, motor control, plasma TV, electric bicycle, and other industries.
