| Unit Price: | $ 423 |

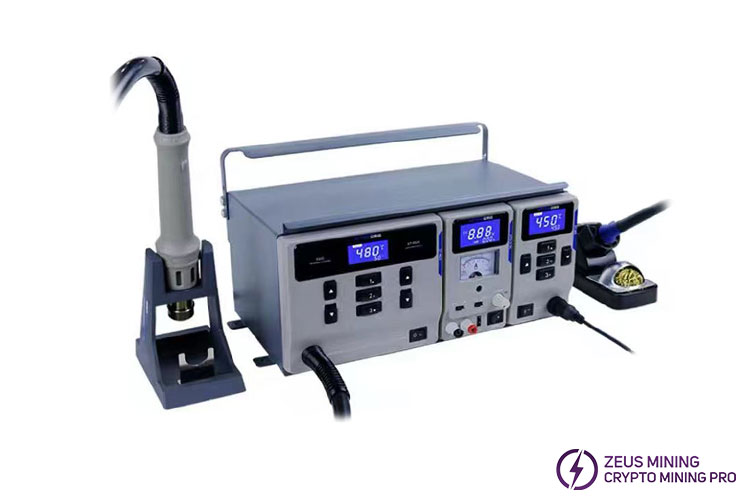

MS-300 Desoldering Gun Repair Kit includes ST-862D desoldering station, ST-965 welding station, and APS15-3A power supply. The power of the ST-862D desoldering station is 1000W, the magnetic induction automatically sleeps, and the quality is guaranteed. The power of the ST-965 welding station is 65W, the temperature is adjustable from 200 to 450 ℃, and it is intelligently standby and shut down. APS15-3A power supply is a 0.5A/3A dual gear switching, 5V/15V continuously adjustable series-type regulated linear power supply. The products in the suite can be used alone or in combination. The quality is guaranteed.
Attention: Please select the power cord plug when purchasing this product. We will give you an International universal socket adapter for free according to your choice.

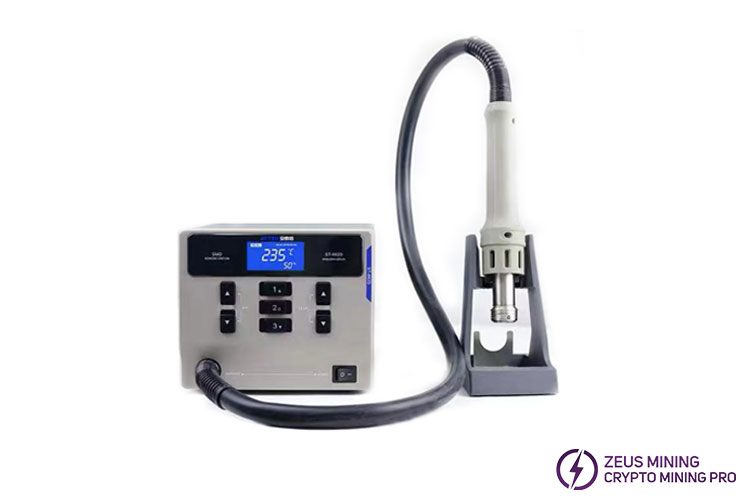

Product model: ST-862D
Rated working voltage: AC 230V±10% 50Hz
Overall power: 1000W(Max)
Temperature range: 100~480C/212F~896F
Temperature accuracy: ±35°C
Hot airflow: 120L/min(Max)30L/min(Min)
Air supply device: brushless vortex fan
Heating core: plug-in
Quick temperature/air volume: 3 groups of temperature/air volume, which can be called quickly
Heating power display: 5 dynamic power bars
Sleep function: automatic sleep, regular work
Dimensions: 208x174x150(mm)
Packing list: Host*1, Handle*1, Air Nozzle*4,Heat gun bracket*1, power cord*1, manual*1
Net weight: 3.34kg

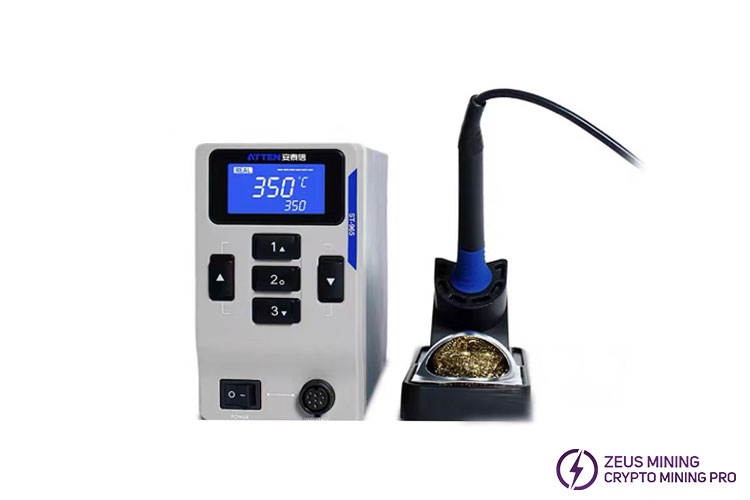

Product model: ST-965
Rated working voltage: AC230V±10%50Hz
Rated power: 65W
Temperature range: 200~450℃/392~842F
Temperature stability: ±1°C (air still without load)
Temperature accuracy: ±10℃
Safety level: Class 1 (controller host) Class 3 (welding handle accessories)
Quick temperature: 3 groups of temperatures can be called quickly
Sleep function: 0~60 minutes; the default is 10 minutes; turn on sleep
Turn off the heating function: 0~60 minutes; the default is 10 minutes; turn off the heating
Heating core: Plug-in ceramic heating core
Handle material: soft silicone wire
Dimensions: (L)210x(W)88x(H)150mm
Weight: about 1.97g

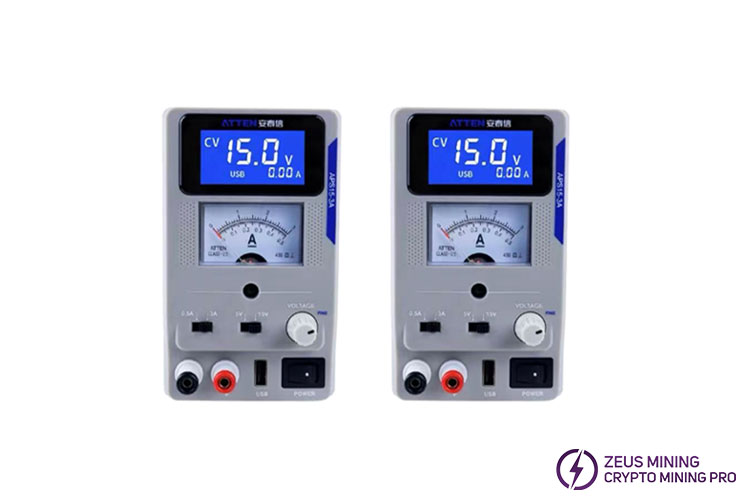

Product model: APS15-3A
Primary road output voltage: 0-5V/0-15V dual gears
Primary road output current: 0.5A/3A dual gears
Rated output power: 56W (including USB output)
Input voltage/frequency: 220V/A
Ripple and Noise: CV≤0.5mVrms(5Hz~1MHz)
Power regulation: CV≦0.01%+3MV
Load regulation: CV0.01%+8mV
Protection function: OCP (over-current cut-off recoverable type) OHP (overheat protection)
Other functions: coarse adjustment/fine adjustment 5V/15V switching, 0.5A/3A switching parameter locking function
USB interface: fixed 5V output (±5% accuracy), 21A max (over-current protection, cut-off output)
