| Unit Price: | $ 90 |

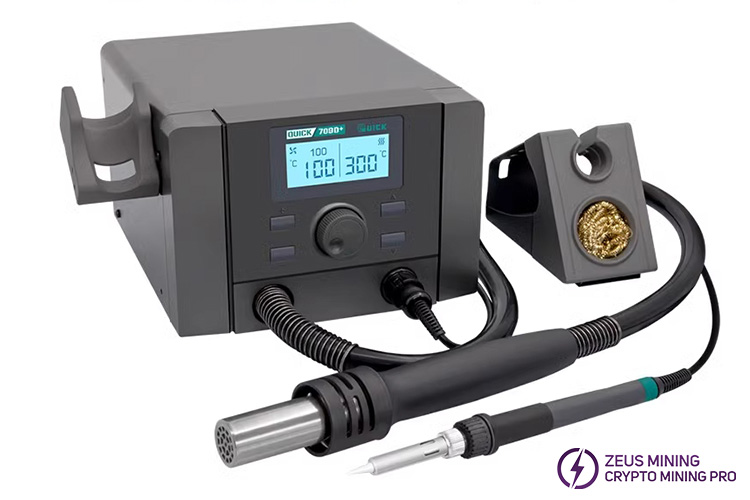

Quick 707D+ 709D+ 2 in 1 rework system
Quick 707D+ or 709D+ is a two-in-one high-power soldering iron that combines a hot air gun and a soldering station, specially designed for ASIC miner hash board and power supply repair. It features a high‑definition LCD, adopts a brushless vortex blower noise reduction design, with gentle air volume and infinitely variable speed. The air gun holder can be adjusted within 45°. The soldering station adopts an all-metal heating core, which is sturdy and durable, low-voltage, safe and worry-free, has a split solder nozzle heating, and has a low consumables cost. It is ideal for desoldering and soldering chips, components, and PCB repair on Antminer, Whatsminer, Iceriver, and other mining equipment.
Attention: Please select the power cord plug when purchasing this product. We will give you an International universal socket adapter for free according to your choice.
• Large power, rapid heating, abundant thermal capacity, high heating efficiency.
• LCD, dynamic visual display of the temperature of soldering and rework, digital temperature calibration.
• 2-in-1 design, multi-usage, and saves space.
• Brushless vortex airflow fan, stepless adjustment, soft airflow.
• All metal designs for heaters are durable, low-voltage heating, safe, separate designs of heaters and soldering tips, and low cost of consumables.
• All metal design for an iron stand with copper and brass, no harm to the soldering tip.
• The handle is more ergonomic, light, and comfortable.
Model | 707D+ | 709D+ |
Air gun power | 800W | 1350W |
Soldering station power | 70W | |
Air gun temperature range | 100~500℃ | |
Soldering station temperature range | 100~480℃ | |
Air gun temperature stability | ±5℃ (still air without load) | |
Soldering station temperature stability | ±5℃ (still air without load) | |
Display type | LCD display | |
Operating voltage | 220V AC | |
Flow rate | 30L/min (Max) | 50L/min (Max) |
Air volume level | 10~100 levels | 10~100 levels |
Ambient temperature | 0~40℃ | |
Tip to ground potential | ＜2mV | |
Tip to ground resistance | ＜2Ω | |
Tip model | 960 series | |
Tip model | A2025/A2064/A2084 | A1124/A1130/A1300 |
Dimensions | 98x170x151mm | 180x210x131mm |
Weight | Approx. 2.6KG | Approx. 6KG |
707D+ (800W hot air / 30L/min) is suitable for routine maintenance; 709D+ (1350W hot air / 50L/min) is suitable for high-power/large components.

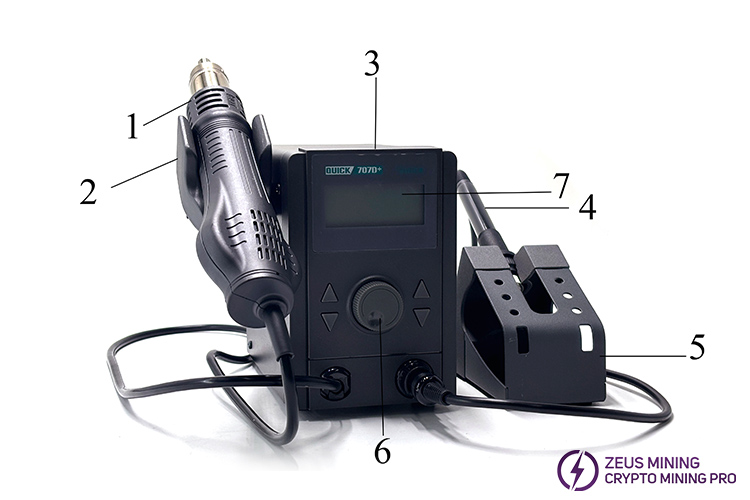

Product components description:
Note: 707D+ and 709D+ have the same components, 707D+ is used as an example for the following introduction;
No. | Name | Description |
1 | Air gun handle | / |
2 | Air gun stand | / |
3 | Host | / |
4 | Soldering iron handle | / |
5 | Soldering iron stand | / |
6 | Air volume adjustment knob | The clockwise direction increases air volume; counterclockwise direction decreases air volume. |
7 | LCD display | / |

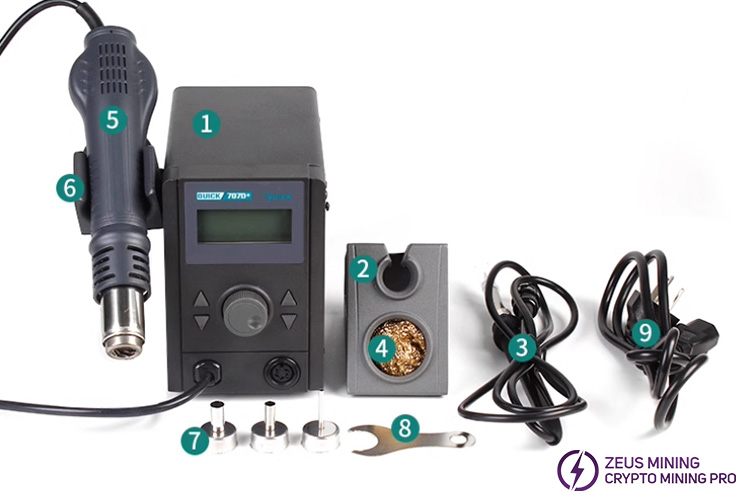

How to use Quick 707D+?
Except for the main unit, the other parts of 707D+ and 709D+ are the same.
① Host
② Soldering iron stand
③ Soldering iron handle
④ Cleaning ball
⑤ Air gun handle
⑥ Air gun bracket
⑦ Air nozzle
⑧ Wrench
⑨ Power cord
Please click Quick 707D+ 2 in 1 soldering station usage tutorial for detailed usage of this product.
1. What is the difference between 707D+ and 709D+?
709D+ has higher power and larger air volume, suitable for heavy-duty repair; 707D+ is more suitable for daily ordinary welding work.
2. Is this soldering station suitable for miner hash board repair?
Yes, it is professionally designed for ASIC miner hash board, power supply, and circuit board disassembly and welding.
3. Does it support temperature adjustment?
Equipped with a digital LCD screen, precise temperature adjustment, and a constant temperature locking function.
