Antminer tester voltage regulating board

Product description

The Antminer fixture voltage regulator board is used to skip the test fixture's detection of the PSU version when using the Antminer universal test fixture to detect the hash board fault. It is no longer necessary to use the original power supply. We directly use the WANPTEK KPS3030D DC PSU to power the hash board. The module is suitable for Antminer S21, T21, S21XP, KS5, KS5PRO, S19Hydro, S19XP Hydro, KA3, HS3, KS3, DR7, K7, D7, L7, S19kPro, S19XP, S19Pro, S19jPro, S19j, S19+, S19jPro+, T19, S19, S19i, S17+, S17e, S17, S17Pro, T17+, T17e, T17, etc. hash board repair.

Product advantages:

1. After using the KPS3030D power supply instead of the miner's original PSU, maintenance work will say goodbye to noise.

2. Using the KPS3030D power supply, you can see the current changes at any time during maintenance to prevent the hash board from burning out due to abnormal currents.

3. It is suited for most power supplies of Antminer miners, such as APW11A1216-1a, APW171215a, APW11, APW121215a, APW121215b, APW121215c, APW121215d, APW121215e, APW121215f, APW121215g, APW121417a, APW121417b, APW9, APW9++, etc.

Voltage regulator board interface description:

Interface 113: corresponding power supply models include APW121215a, APW121215b, APW121215c, APW121215d, APW121215f, APW121215g, applicable miners include S19, S19j, S19j+, S19Pro, S19jPro, S19jPro+, S19XP, S19KPro, S19aPro, S19a, S19Pro-A, S19i, T19, D7, E9, E11, E9Pro, etc.;

Interface 117: corresponding power supply models include APW121215e power supply, applicable miners include S19Pro, S19jPro, S19XP, S19L, etc.;

Interface 120: the corresponding power supply models include APW171215a, APW121417a, APW121417b, applicable miners include S21, S21XP, S19jXP, KS5, KS5PRO, S19, S19XP, L7, S19JL, K7, DR7, KA3, KS3, HS3, etc.

Interface 65: the corresponding power supply models include APW11A1216-1a, APW11, APW9, APW9++, applicable miners include T21, S19Hydro, S19XP Hydro, S17 Pro, T17, S17, S17e, S17+, T17e, T17+, etc.

Product display

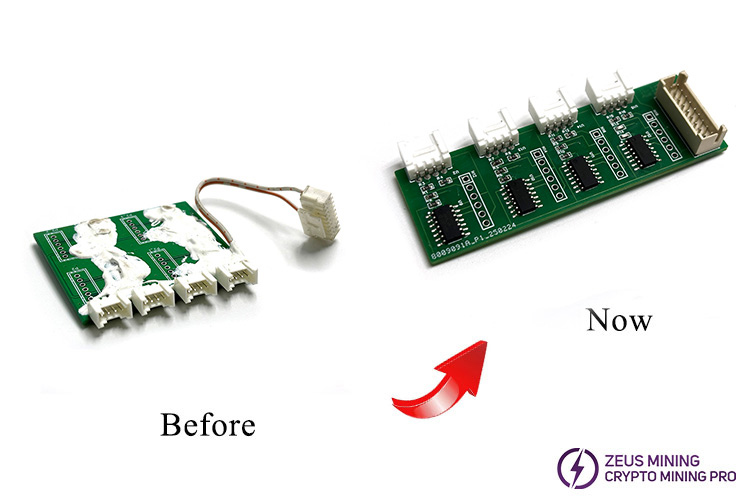

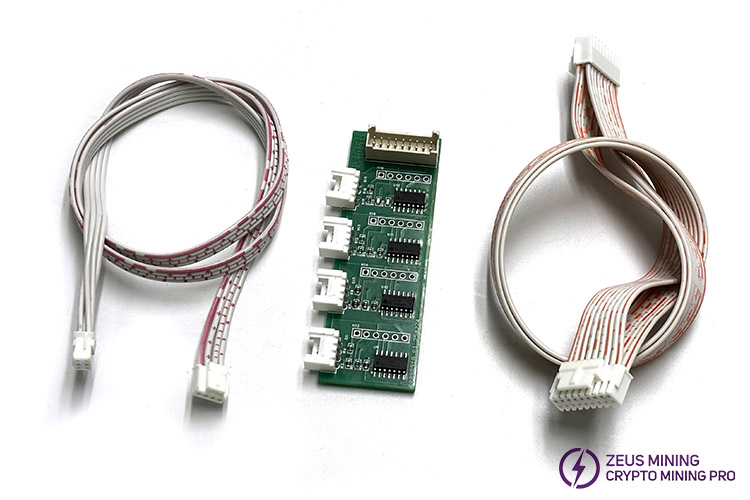

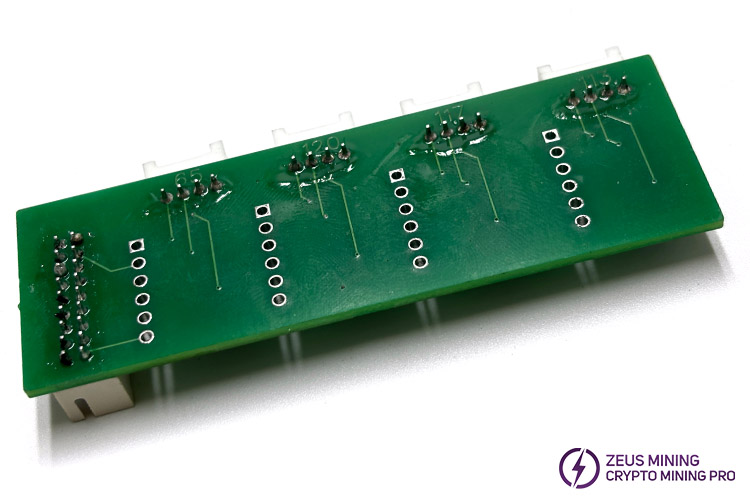

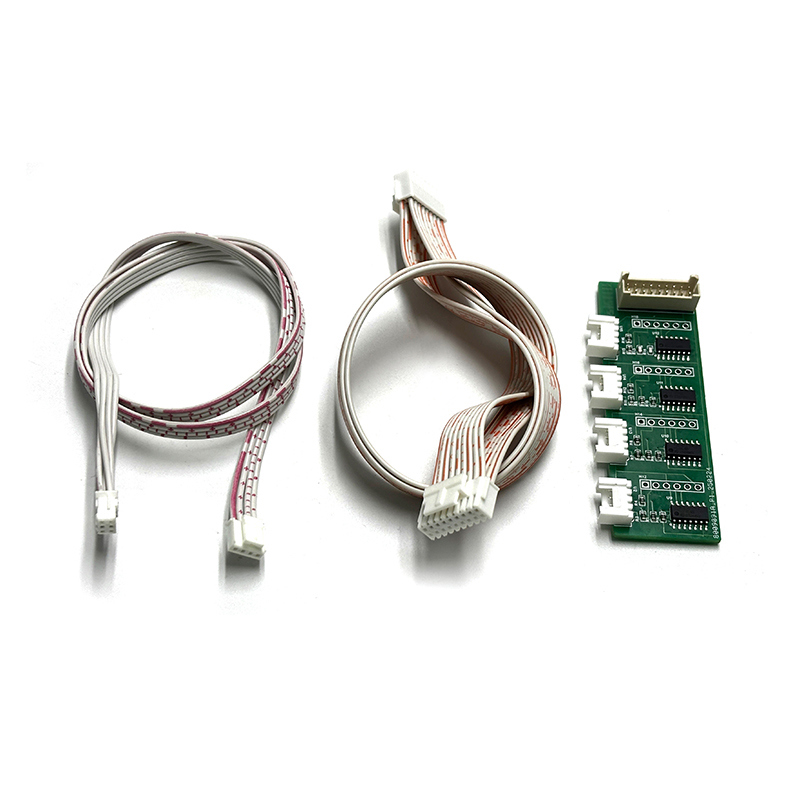

After purchasing the voltage regulation board, we will provide you with an additional Antminer 4-pin 30cm voltage regulation cable and an 18-pin 30cm data cable for the test fixture, which are used to connect the test fixture to the voltage regulator board.

Effect display

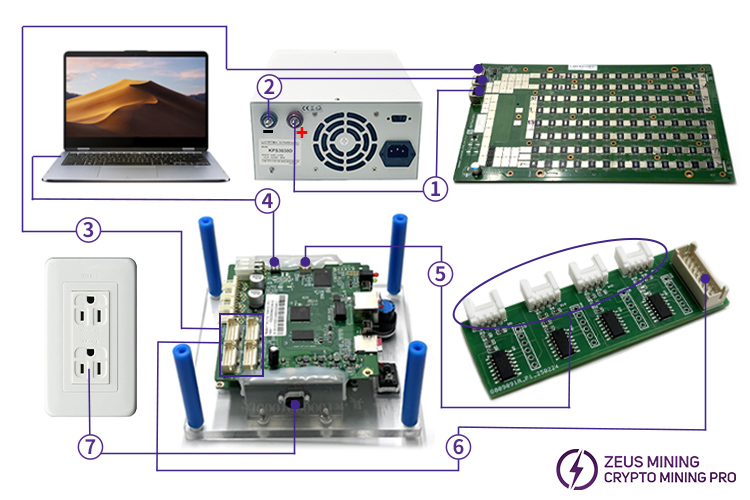

The connection method is as follows:

① and ② red and black alligator clip power cable: connect the positive and negative electrodes of the test fixture and the hash board respectively;

③ Test fixture cable: connected to the test fixture and hash board;

④ USB to TTL cable: connected to the tester and the computer;

⑤ 4pin voltage regulation cable: connected to the Antminer tester voltage regulating board and the fixture;

⑥ Test fixture data cable: connected to the Antminer tester voltage regulating board;

⑦ 12V powering interface: used to powering the fixture.

To learn more about usage, please click the article to view: How to use the Antminer test fixture voltage regulator board repair tool?
