| Unit Price: | $ 0.63 |

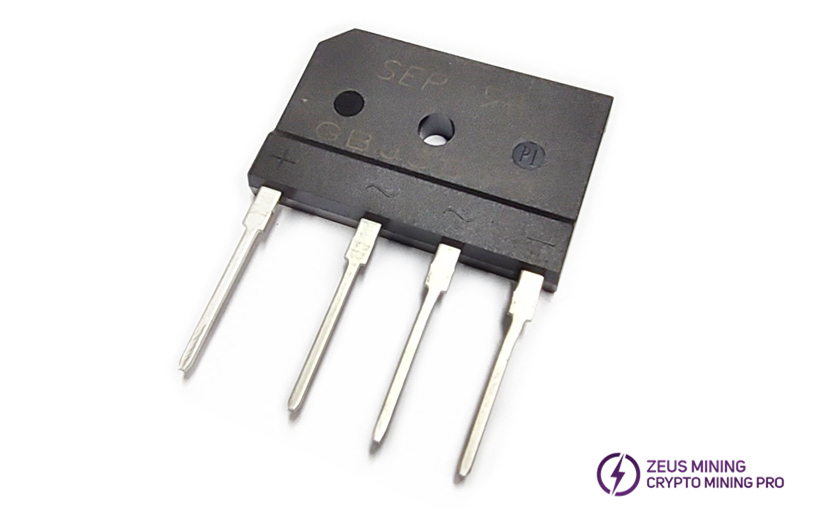

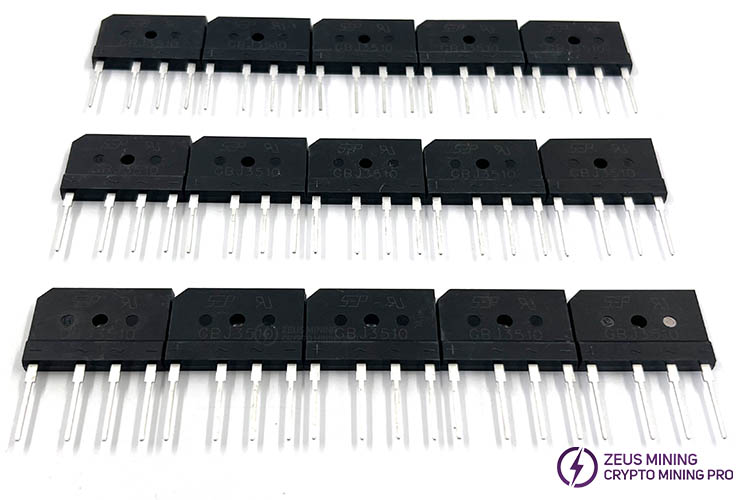

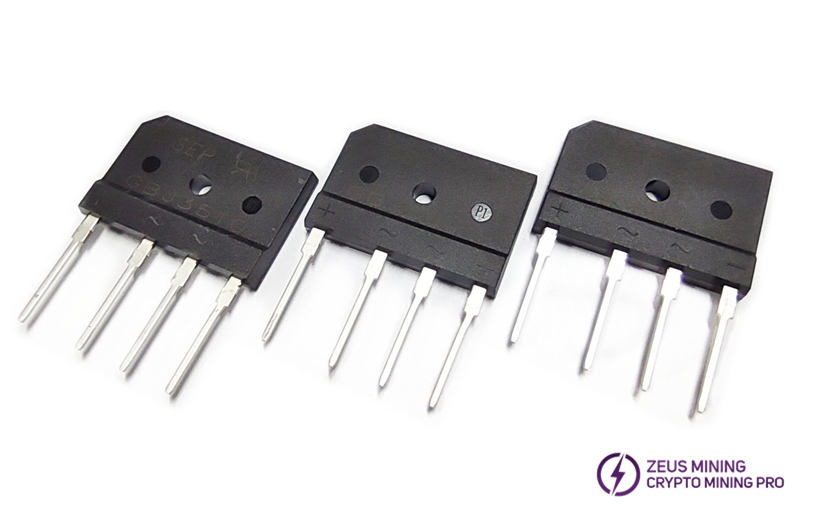

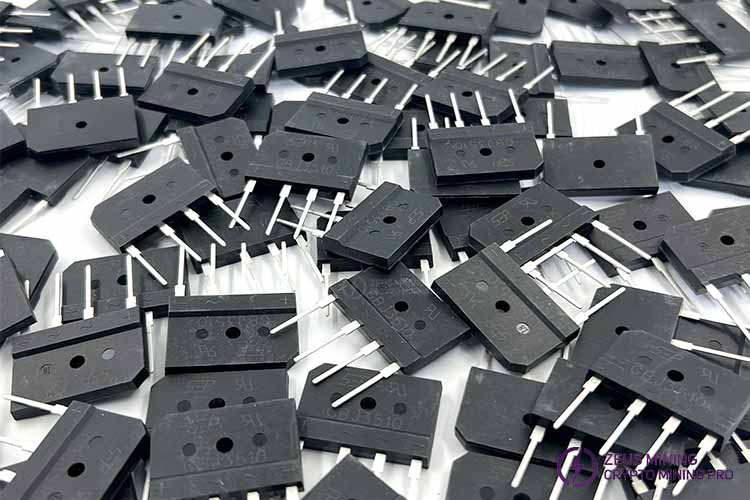

GBJ3510 rectifier bridge rectifier for Whatsminer P21 power supply
The GBJ3510 is the 35A 1000V full-wave rectifier bridge at the input of the Whatsminer P21 power supply. It provides rectified DC power to the PFC high-voltage MOSFETs and SiC freewheeling diodes, serving as the core pre-power supply device for the PFC boost circuit and the subsequent 12V output. A failure of this rectifier bridge can cause random fluctuations in the miner's hashrate, frequent high-temperature throttling under full load, immediate triggering of the overcurrent protection lockup upon power-up, no 380V high-voltage bus and 12V hashrate output, and the miner becoming completely unable to boot.
Constantly operating the P21 power supply under 24/7 high-dust, enclosed, full-load mining conditions will exacerbate the thermal aging and loss of this high-power rectifier bridge. During repair and replacement, the input fuse, filter capacitors, PFC power transistors, and freewheeling SiC diodes must be checked simultaneously. Replacing only the rectifier bridge can easily lead to secondary component failure, causing prolonged mining shutdowns and reduced production.
This is a brand-new original product, and the price may be more expensive than the substitute product, but the quality is more guaranteed; welcome to buy.
Maximum repetitive peak reverse voltage: 1000V
Peak reverse non-repetitive voltage: 1100V
Maximum DC blocking voltage: 1000V
Maximum average forward rectified output current, T= 85℃: 35A
Peak forward surge current single sine-wave superimposed on rated load: 400A
1. High surge current capability.
2. Low thermal resistance.
3. Compliant to RoHS.
4. Isolation voltage up to 2500V.
General-purpose use in AC / DC bridge full wave rectification for big power supply, field supply for DC motor, industrial automation applications.
