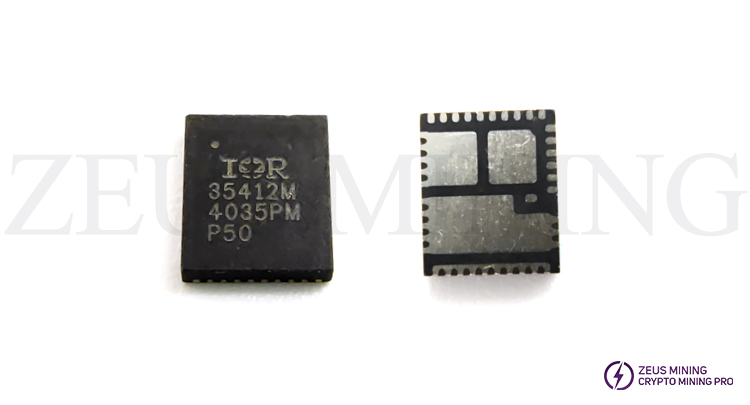

The IR35412MTRPBF driver chip combines low-voltage MOSFET technology with the latest driver design to provide customers with a best-in-class high-efficiency device for managing processor power. It comes in an industry-standard 5*6 package and various current ratings to meet the requirements of high-end and cost-effective customers.
The IR35412MTRPBF features integrated temperature compensation to achieve current sensing accuracy better than inductor DCR sensing methods and also provides cycle-by-cycle overcurrent protection with programmable thresholds and fault flags, allowing the user to set a specific current limit.

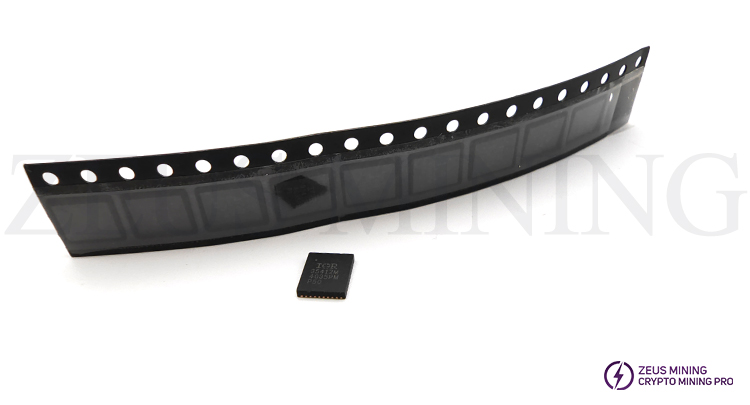

› Small 5 x 6 x 0.9 mm³ over-molded PQFN package
› Highly accurate current reporting
› Programmable constant current limit OCSET
› Fast switching technology improves performance at higher frequencies, better peak efficiency
› Input voltage range from 4.25 V to 16 V
› Output voltage range from 0.25 V to 5.5 V
› Output current capability up to 70 A
› Runs up to 1.5 MHz
› Optimized for 5 V drive
› Server and storage
