| Unit Price: | $ 0.3 |

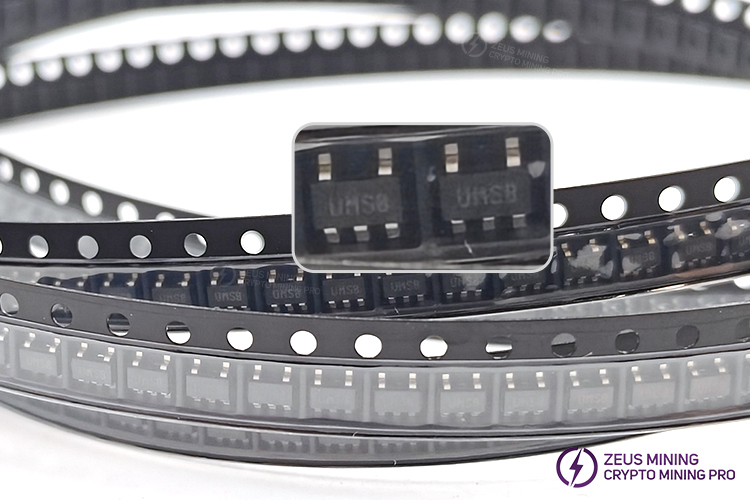

The MCP1824T-1202E/OT is an LDO chip used in Antminer S21PRO, S21XP, L9, KS5, KS5PRO, S19XP, S19jpro, etc. hash boards. It provides a fixed 1.2V output voltage with a current capacity of up to 300mA, making it ideal for powering microcontrollers, sensors, and low-voltage circuits in mining hardware. This linear regulator has an operating temperature range of -40°C to 125°C.
The MCP1824T-1202E/OT is a 1.2V LDO voltage regulator chip for hash boards, providing a stable low-voltage power supply for the logic circuits on the board. Deterioration of the chip's voltage regulation can lead to voltage drift and chip overheating, resulting in hash rate fluctuations, hash board recognition anomalies, frequent errors, and inability to start without a hash rate. Prolonged exposure to high temperatures accelerates component aging. Before replacement, it is necessary to check for load short circuits and surrounding capacitors. Simply replacing the chip alone can easily lead to further damage, causing production stoppage losses for a single hash board.
Model | MCP1824T-1202E/OT |
Voltage - Input (Max) | 6V |
Voltage - Output (Min/Fixed) | 1.2V |
Voltage Dropout (Max) | 0.32V @ 300mA |
Current - Output | 300mA |
Current - Quiescent (Iq) | 220µA |
PSRR | 55dB (100Hz) |
Control Features | Enable, power good |
Protection Features | Over temperature, short circuit, under voltage lockout (UVLO) |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface mount |
