| Unit Price: | $ 12 |

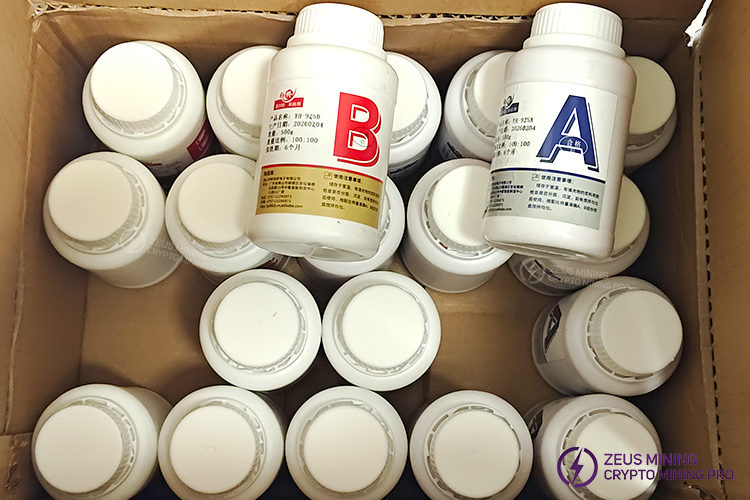

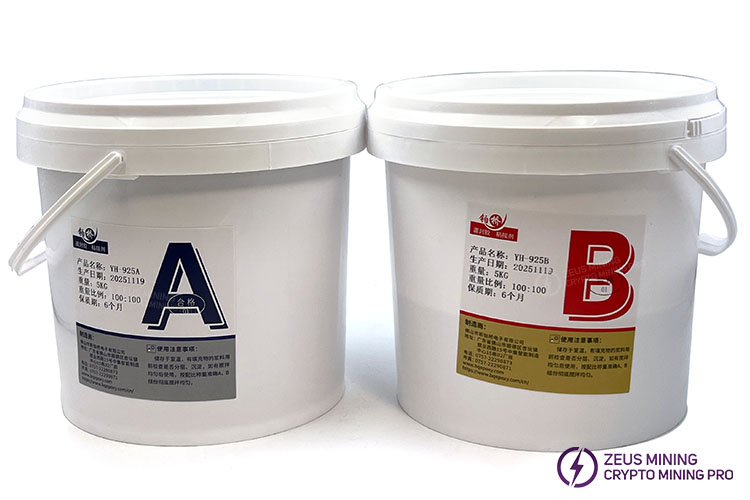

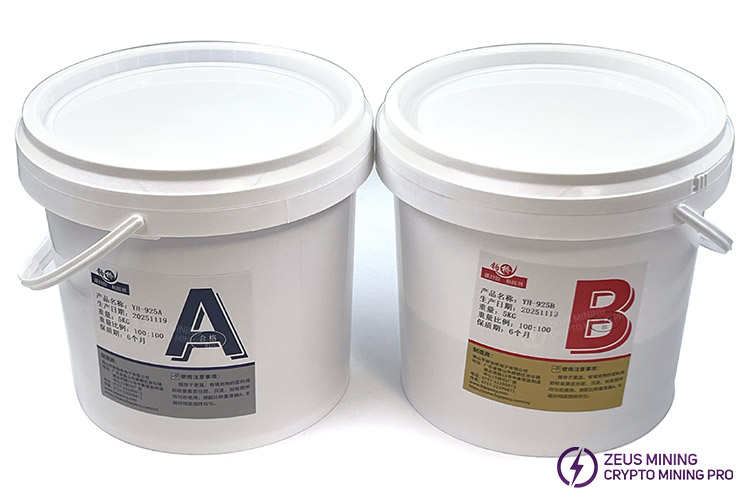

YH-925A/B is a medium-viscosity, two-component addition-type silicone potting compound with stable dielectric insulation properties. It can be cured at room temperature or with heating, with faster curing speeds at higher temperatures. It is commonly used for long-term protection of sensitive circuits or electronic components, providing adequate protection for complex structures and shapes in electronic modules and devices, such as ASIC mining power circuit boards. After potting, it is easy to clean and remove for the repair of electronic components, and a new potting compound can be injected into the repaired areas.
Features:
1. Low viscosity after mixing, good flowability, and easy defoaming; Quickly penetrates the small gaps of complex circuit boards, suitable for the insulating encapsulation and protection of electronic components.
2. Resistant to high and low temperatures, -40°C to 200°C; Excellent weather resistance, low stress, and protection of electronic components.
3. Non-corrosive to electronic components; Flexible, allowing for rework after potting; Moderate hardness between Shore A 50-70, good flexibility and impact resistance, effectively resisting pressure without breakage.
4. Adhesive sealing, resistant to moisture; After potting, installed and debugged electronic components and circuits are protected from vibration, corrosion, moisture, etc.
5. Highly efficient thermal conductivity and rapid heat dissipation; Specifically designed for electronic modules with high requirements for temperature resistance and heat dissipation.
Parameters:
Performance Indicators | YH-925A | YH-925B | |
Before Curing | Appearance | Light red viscous substance | White viscous substance |
Viscosity (cps centipoise) at 25℃ | A:3500-6500 | B:3500-6500 | |
Density (g/cm³) | 2.5-2.8 | 2. 5-2.8 | |
Operational Performance | Proportion | Weight ratio: A:B=1:1 | |
Viscosity after mixing | 5000-7000cps | ||
Working time (25℃/min) | 60-90min | ||
Initial curing time at room temperature | 3-4 hours | ||
Complete curing time at room temperature | 24 hours | ||
Cure time at 60~80℃ | 1-2 hours | ||
After Curing | Hardness (Shore-A) | 15-25 | |
Thermal conductivity (W/(m.k)) | 3.0±0.1 | ||
Dielectric strength (kV/mm) | ≥15 | ||
Volume resistivity (Ω.cm) | ≥1.2*10¹⁴ | ||
Tensile strength (MPa) | ≥1 | ||
Elongation % | ≥50 | ||
Temperature range (℃) | -60-200 | ||

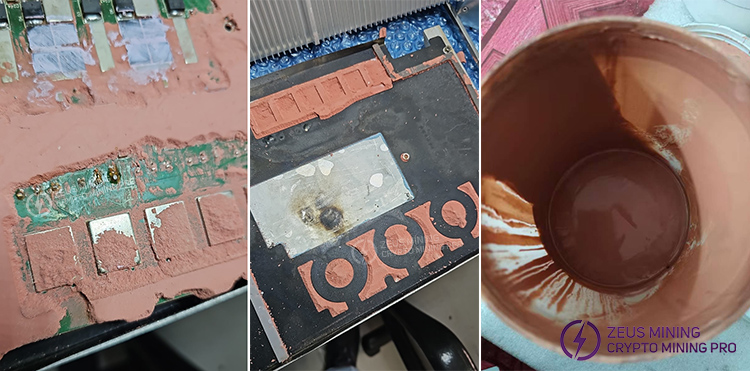

Widely used for sealing and potting high-heat-generating fireproof products such as ASIC miner power supplies, LED street light driver power supplies, LED spotlight power modules, electroplating power supplies, power rectifiers, transformers, and generator circuit boards; as well as potting protection for high-power electronic components, electronic modules, and circuit boards with high requirements for temperature resistance and heat dissipation.
Due to the pastes and liquids are sensitive goods and their transportation is restricted, this product will be shipped separately using sensitive goods channels, and the delivery time will be slightly longer 8 to 20 working days.
