| Unit Price: | $ 2.4 |

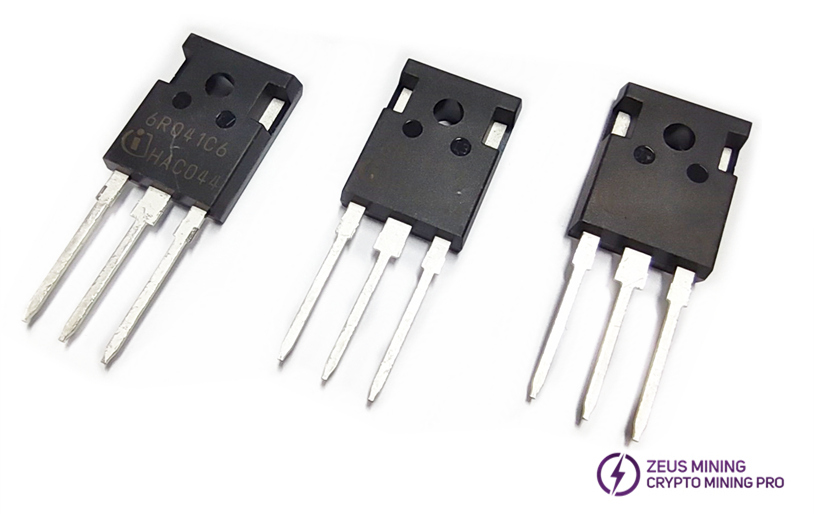

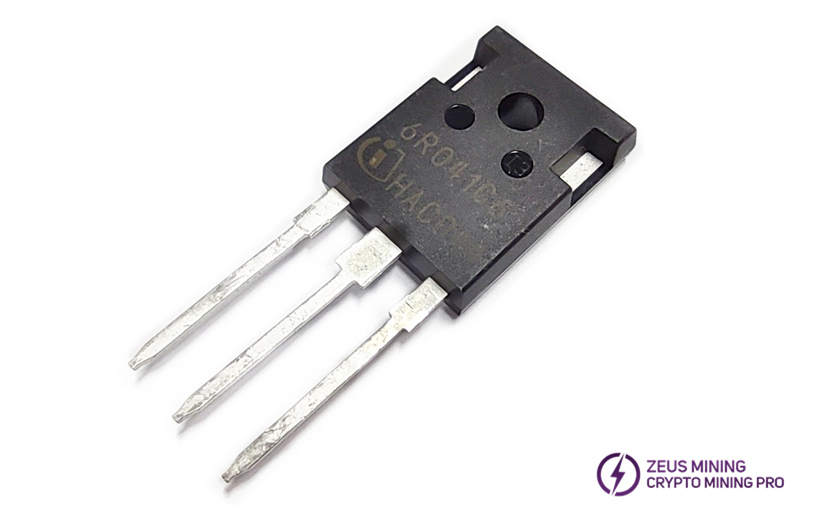

The 6R041C6 IPW60R041C6 650V 77.5A superjunction high-voltage MOSFET is the main switch for the PFC boost converter in high-power ASIC mining rig power supplies. It provides a clean and stable high voltage to the subsequent LLC main conversion circuit, ensuring a stable 12V power supply to the hash board under full load.
After the 6R041C6 malfunctions, the AC input fuse of the ASIC miner power supply blows instantly upon power-on, resulting in no 400V high voltage, the miner failing to power on at all, the PFC heatsink becoming abnormally hot, and the no-load 400V bus voltage being low. Connecting the hash board immediately causes a voltage drop and machine shutdown, while under full load, it shuts down briefly due to high temperature. A severe short circuit can also burn out the drive resistor, PFC driver chip, and boost SiC diode, causing the high-voltage power circuit board to burn black and emit a strong burnt smell.
This is a brand-new original product, and the price may be more expensive than the substitute product, but the quality is more guaranteed; welcome to buy.
Channel type: N
Large continuous drain current: 77A
Large drain-source voltage: 650V
Large drain-source resistance: 41mΩ
Large gate threshold voltage: 3.5V
Small gate threshold voltage: 2.5V
Large gate source voltage: ±20V
Package type: TO-247
1. Extremely low losses due to very low FOM Rdson * Qg and Eoss.
2. Very high commutation ruggedness.
3. Easy to use / drive.
4. JEDEC qualified, Pb-free plating, Halogen free.
Power supply maintenance of miners, PFC stages, hard switching PWM stages and resonant switching PWM stages for e.g. PC Silver box, Adapter, LCD & PDP TV, Lighting, Server, Telecom, UPS and Solar.
Please note: For MOSFET paralleling the use of ferrite beads on the gate or separate totem poles is generally recommended.
