BitRox hash board tester for Antminer Whatsminer Avalon

Product description

The BitRox test fixture is a professional, multifunctional repair and testing tool for cryptocurrency mining hash boards. It supports testing for hash boards and PSUs from Antminer, Whatsminer, and Avalon. Integrating fault diagnosis, chip testing, EEPROM read/write capabilities, real-world mining simulation, and PSU analysis, it serves as an essential tool for professional mining hardware repair technicians. The device features both a touchscreen and physical buttons, supporting three control methods: local handheld operation, PC software, and a mobile app. It includes a built-in WiFi hotspot, allowing users to access the BitRox tester official website for free firmware updates (user-installed) and instructional videos.

Key features of the BitRox test fixture:

1. Comprehensive hash board testing

Supports the full range of hash boards from Whatsminer, Antminer, and Avalon, including Hydro models. It reads data, such as Nonce, chip temperature, and core voltage, from individual ASIC chips and visualizes the chip layout. It accurately pinpoints damaged or anomalous chips with 99.9% precision and supports "real-world mining" mode for operational testing.

Built-in testing modes include:

ChipFixMode: Precise, low-power fault chip localization; suitable for boards with "read chip ID" errors.

TurboRunMode: High-intensity, in-depth hash board testing.

RescueMode: Chip identification and repair for water-damaged boards.

ThermalMode: Precise acquisition of chip temperature and voltage readings.

HashMonitorMode: Real-world mining simulation; collects chip Nonce data, internal temperatures, and voltages.

ServiceMode: Maintains the chip in a testing state for extended periods.

AI TEST: Fully automated intelligent diagnosis; executes a complete suite of test modes in sequence and generates a chip fault report.

2. EEPROM Read / Write / Edit

Supports reading, backing up, erasing, and modifying EEPROM data on hashboards, including serial numbers, BIN codes, and chip counts, and imports and exports .bin backup files. The device stores up to 32 EEPROM configuration profiles locally, with each slot recording the specific circuit board name and model; you can perform EEPROM read/write operations via a PC or tester, enabling rapid repair of board configuration errors.

3. ASIC miner power supply testing

Supports automatic identification of PSU models for Antminer and Whatsminer units; allows for adjustable output voltage and real-time monitoring of voltage, output current, multi-channel temperatures, fan speeds, all register data, and error codes; supports scheduled burn-in testing to rapidly diagnose hardware faults and protection alerts.

4. Oscilloscope-based fault localization (Avalon-specific)

Uses probes for point-by-point signal testing to quickly pinpoint faults in the signal chain of Avalon hashboards and accurately locate breaks or damage in the chip chain.

5. Three flexible operation modes

① Portable handheld mode: Features a built-in touchscreen LCD and physical function buttons; enables on-site testing without a PC; suitable for testing Whatsminer and Antminer hashboards and PSUs.

② PC software (recommended): Connects to Windows 10 (or later) PCs via the U1 USB-B port; offers the most comprehensive features and highest detection accuracy, minimizes software errors, and reduces the load on the device's main controller.

③ Android mobile App: The device broadcasts a built-in WiFi hotspot; connect your phone to the hotspot for wireless control and mobile viewing of test results.

6. Free, continuous firmware updates

The BitRox tester official website offers free downloads for the PC client, Android APK, firmware, and tutorial videos; it supports firmware upgrades for the tester unit itself and synchronizes updates to the database of supported miner board models. Upgrades must be performed in a specific order: update the tester firmware first, then the hashboard configuration files, to avoid chip recognition errors.

BitRox testing system overview:

BitRox offers testing capabilities at various levels based on customer needs; higher-level units support a wider range of board models and offer more comprehensive testing functions.

Currently, the base configuration for all testers is Level 3. If you wish to upgrade them to Level 4 after purchasing the Level 3 version, please contact us to pay the price difference.

Compatible models:

Supported hashboard models include:

Antminer S21 series (air-cooled and Hydro-cooled), S19 series (air-cooled and Hydro-cooled), Z11, L3, L7, Z15, S9, etc.

Whatsminer M7D, M60, M53, M50S, M33, M32, M30S, M31, M21 series, etc.

Avalon A12, A13, A14 series, etc.

Others: T2T, T2Ti, T2Ts, T2TZ, T2T+, T2Th+, A1, F1, T2THF, T2, A4+, A6, T1, Q3, L2, T3+, etc.

Supported power supply models include:

Antminer APW17, APW12, APW11, APW9 series, etc.;

Whatsminer P221, P222, P21 series, etc.

Software system requirements:

1. PC: Supports Windows 10 or later; requires installation of the CP2104 serial port driver.

2. Mobile: Android system; requires installing the APK package downloaded from the official website.

3. Account: Enter the machine's UID into the "Check Device" section on the official website to retrieve your username. Once logged in, you will see the system interface and navigation menu options. Entering an incorrect password will trigger security lockout mode.

Usage precautions:

1. HashMonitorMode and ThermalMode require a high-power power supply (12–16V, 50A+) with secure wiring; otherwise, errors in chip temperature or nonce readings may occur, and faulty chips may not be detected.

2. After the PC software connects to the tester, the screen will automatically turn off after 20 seconds to save power; press the Up or Down buttons to wake it up.

3. Always back up the original .bin file before modifying EEPROM data, as the erase operation will wipe all board configurations.

4. Do not disconnect the power or unplug the USB cable during the firmware upgrade process. If the update is interrupted, the tester will remain in bootloader mode; please reconnect the device and run the update again.

5. To test for faults on Avalon hashboards, connect an external oscilloscope probe to the device's BNC interface and check the signal path point by point.

6. Water-cooled (Hydro) hashboards must be tested via the Hydro port; the water-cooling mode is identified by selecting the corresponding number of chips.

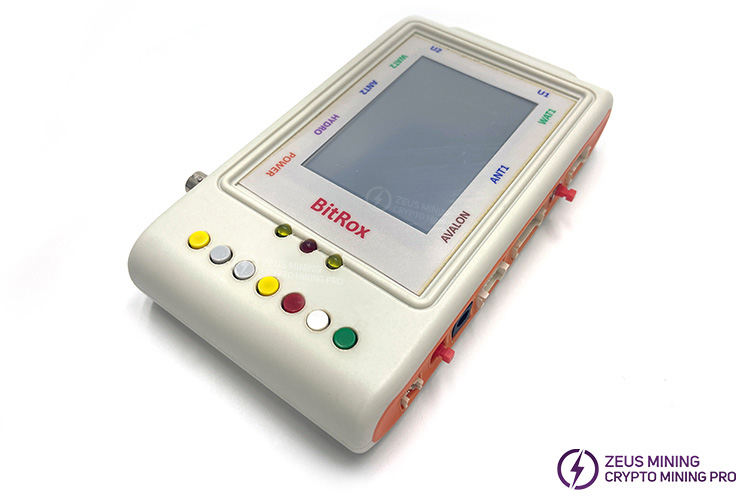

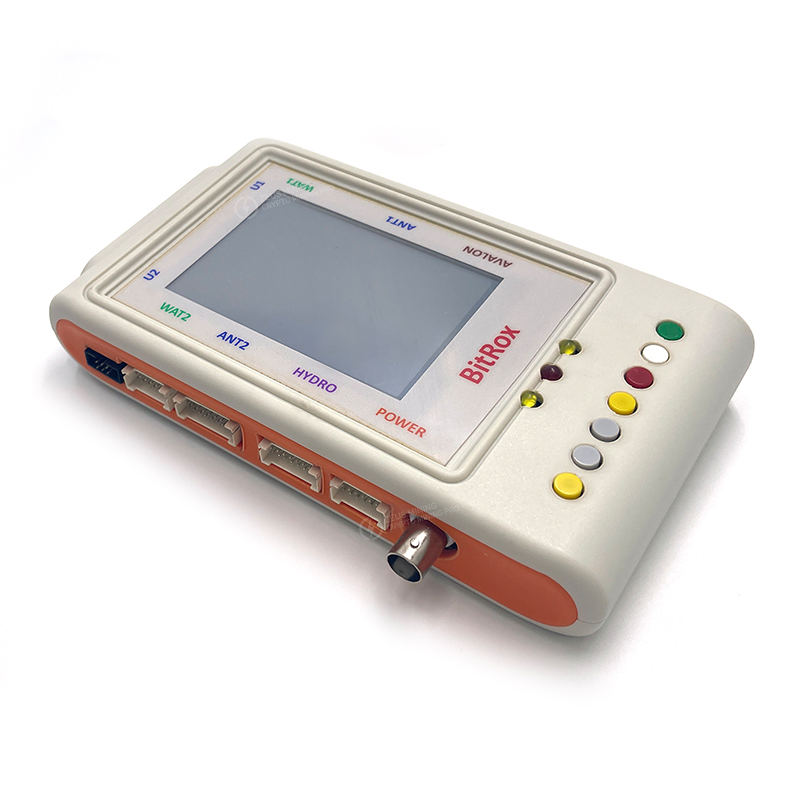

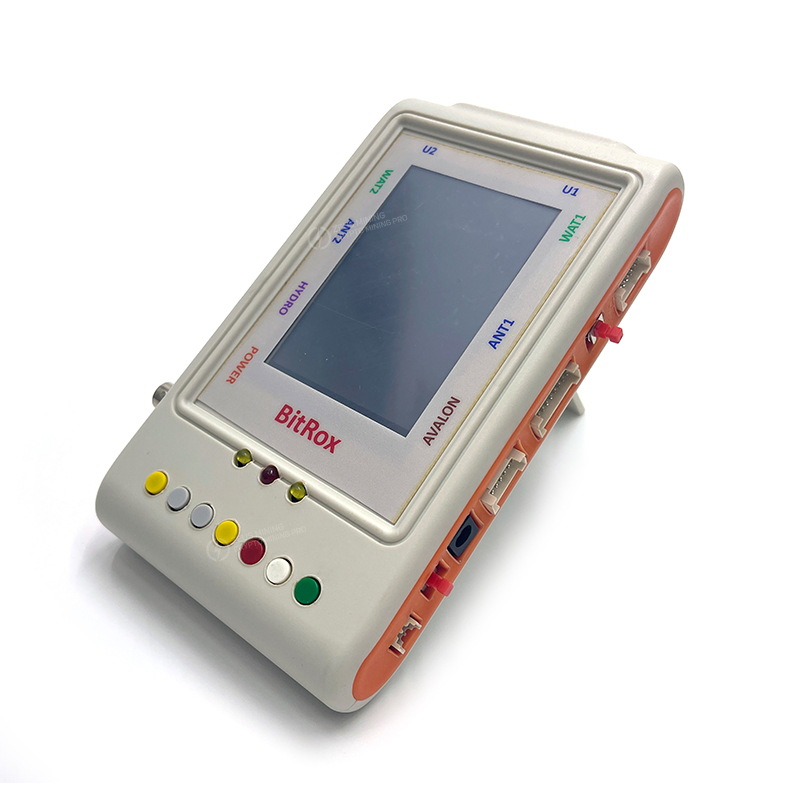

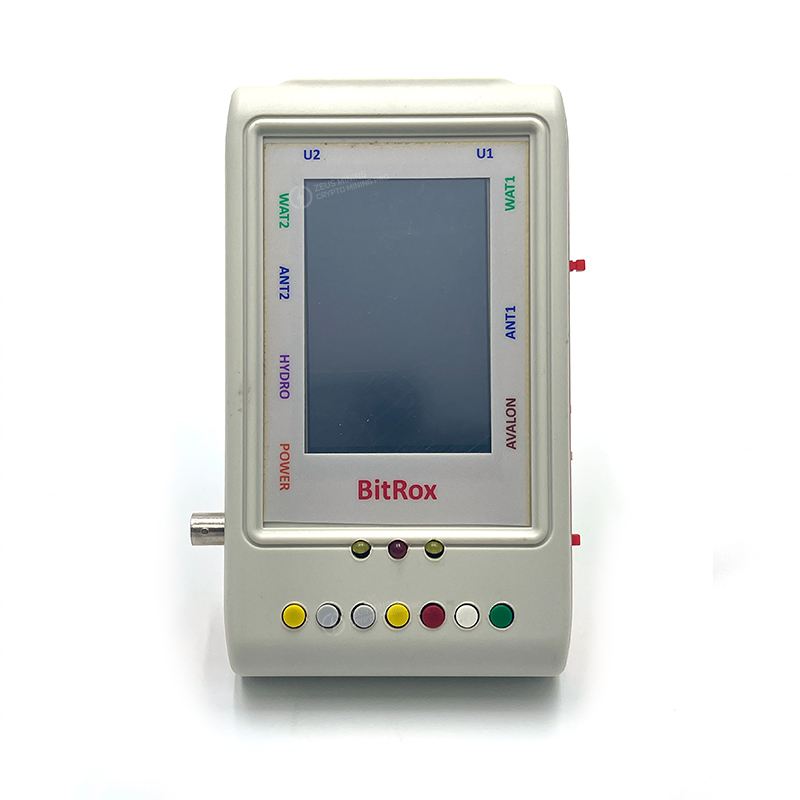

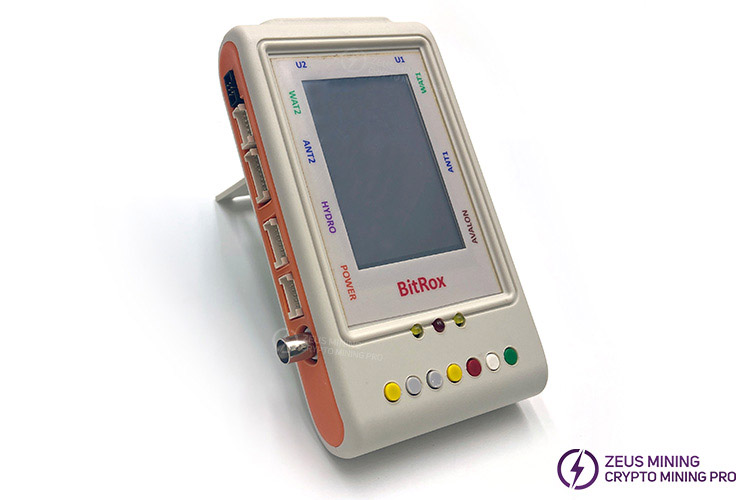

Product display

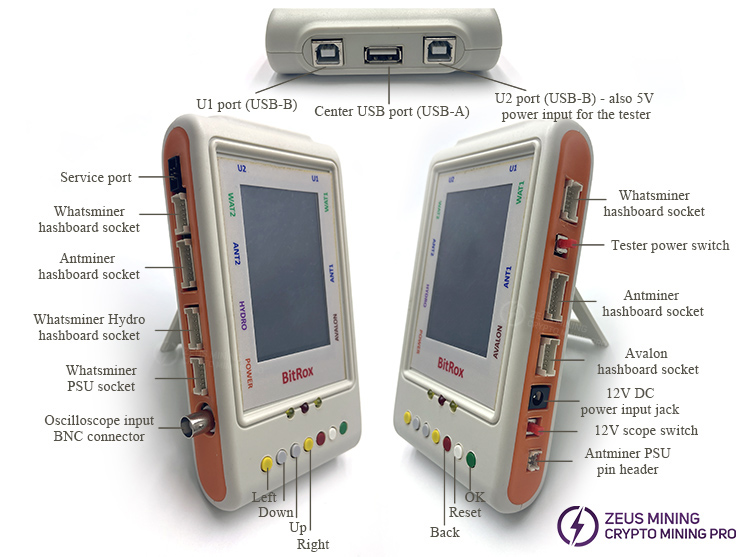

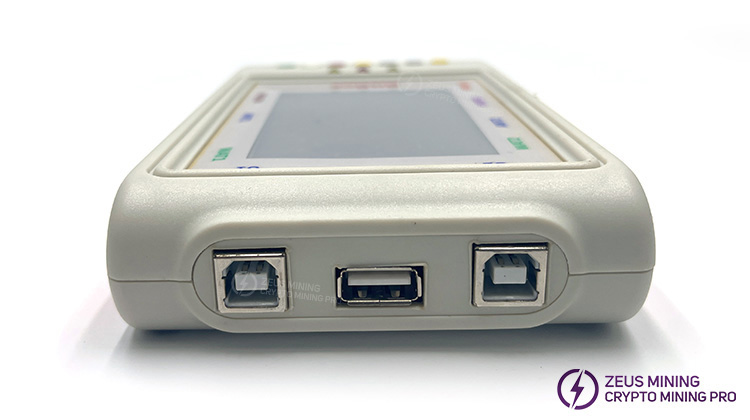

Port description:
