Antminer T19 Hydro Manual

Antminer T19 Hydro Manual

2022/7/27

I. Overview

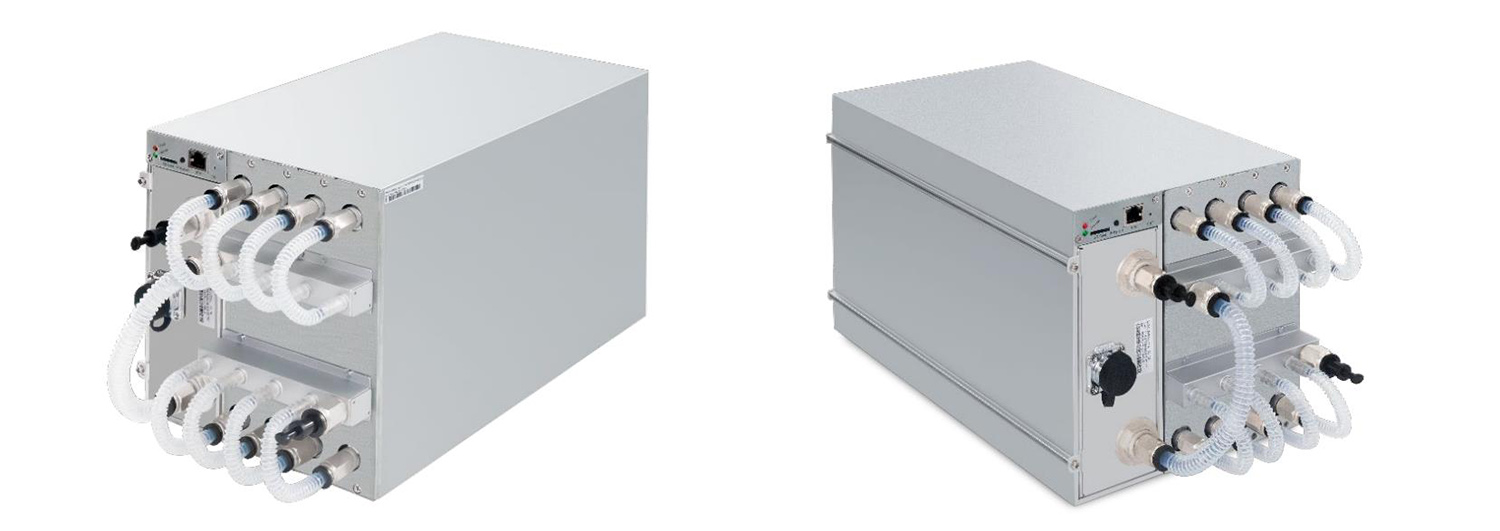

The Antminer T19 Hydro is one of Bitmain’s newest 19 hydro miner series versions. Power supply APW11 is part of the T19 Hydro miner. All T19 Hydro miners are tested and configured before shipping to ensure easy setup.

Antminer T19 HydroCaution:

a. Please refer to the layout above to place your goods in usage in case of any damage.

b. DO NOT remove any screws and cables tied to the product.

c. Please note that the actual miner shall prevail.

d. There must be an external specific Surge Protection device complying with IEC/EN 61643-11 either in front of the power supply or outside the end system (in a separate distribution box or as part of the building installation).

e. Do not plug or remove the device when it is powered on.

f. The external power supply shall have a disconnecting device, which can disconnect L1&L2&L3 simultaneously.

g. The T19 Hydro miner shall be used simultaneously with the ANTSPACE HK3.

1. T19 Hydro miner components

The main components and control board of T19 Hydro miners are shown in the following figure:

Antminer T19 Hydro componentsAPW11 Power Supply:

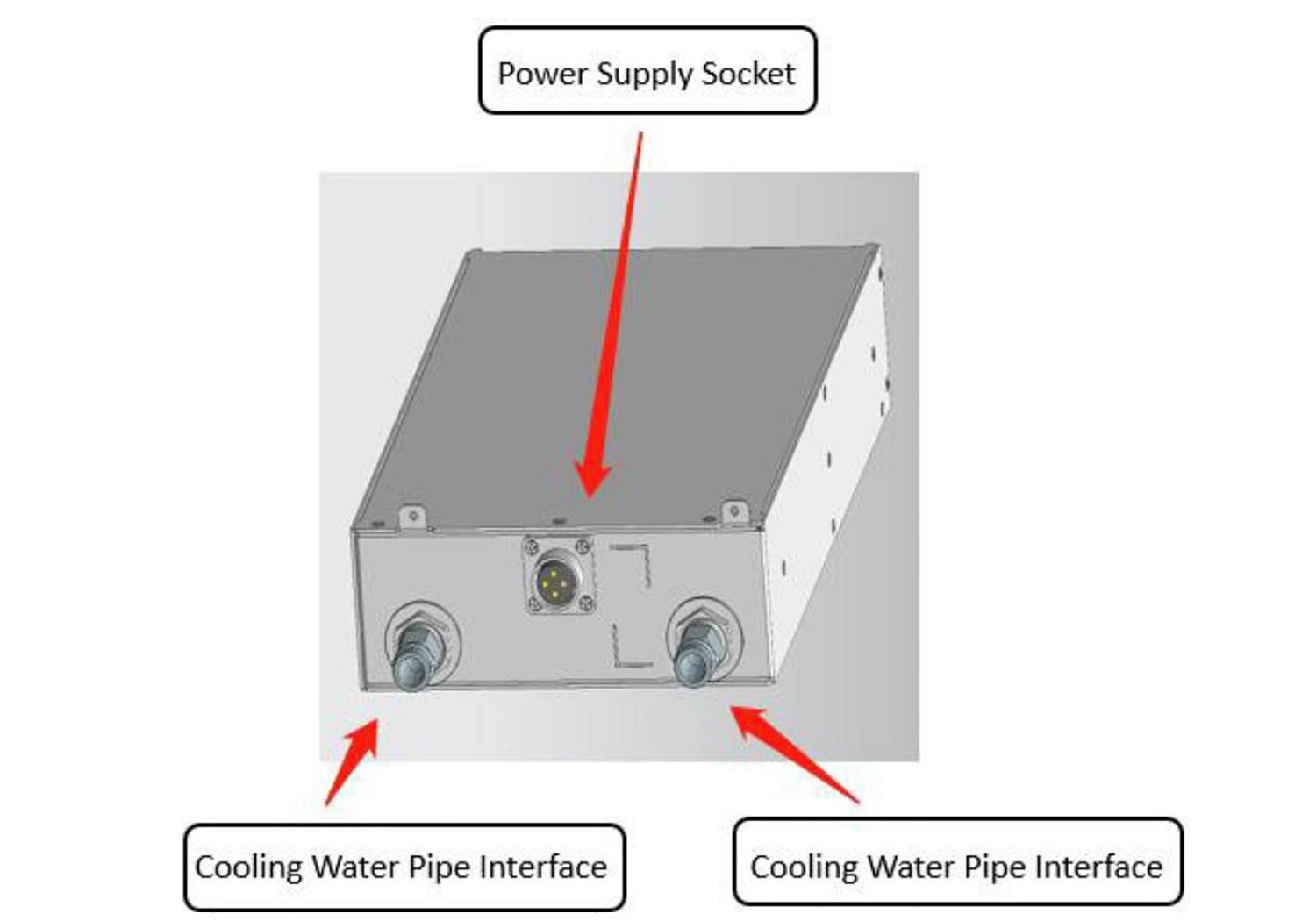

Antminer APW11 Power SupplyNote:

Power supply APW11 is part of the T19 Hydro miner. For detailed parameters, please refer to the specifications below.

2. Miner specifications

Product Glance

Value

Version

T19 Hydro

Model

208-A

Crypto Algorithm/Coins

SHA256/BTC/BCH

Hashrate, TH/s

119 ± 3%

125.5 ± 3%

132 ± 3%

138.5 ± 3%

Power on [email protected]°C, Watt(1-1)

4463 ± 5%

4706 ± 5%

4950 ± 5%

5194 ± 5%

Power efficiency on wall @Tj65°C, J/TH(1-1)

37.5 ± 5%

37.5 ± 5%

37.5 ± 5%

37.5 ± 5%


Detailed Characteristics

Value

Power Supply

Power supply AC input voltage, Volt(2-1)

342~418

Power supply AC Input Frequency Range, Hz

47~63

Power supply AC Input current, Amp(2-2)

30

Hardware Configuration

Network connection mode

RJ45 Ethernet 10/100M

Server Size (Length*Width*Height, w/o package), mm

410*196*209

Server Size (Length*Width*Height, with package), mm

570*316*430

Net weight, kg

15.2

Gross weight, kg

17.5

Environment Requirements

Operation temperature, °C(2-3)

0~40

Inlet water temperature, °C

20-40

Water flow L/min

8±10%

Water pressure bar

≤3.5

Storage temperature, °C

-20~70

Operation humidity(non-condensing), RH

10~90%

Notes:

1) Inlet water temperature;

2) Caution: Wrong input voltage may probably cause miner damage;

3) Three-phase AC input, 10A per wire;

4) Operation altitude is recommended below 2000m.

II. Setting up the Miner

To set up the Miner:

The file IP Reporter.zip is supported by Microsoft Windows only.

1. Download the following file: IP Reporter.zip. Read the article How to use IP Reporter? to learn more.

2. Extract the file.

The default DHCP network protocol distributes IP addresses automatically.

3. Right-click IP Reporter.exe and run it as Administrator.

4. Select one of the following options:

a. Shelf, Step, Position – suitable for farm miners to mark the location of the miners.

b. Default – suitable for home miners.

5. Click Start

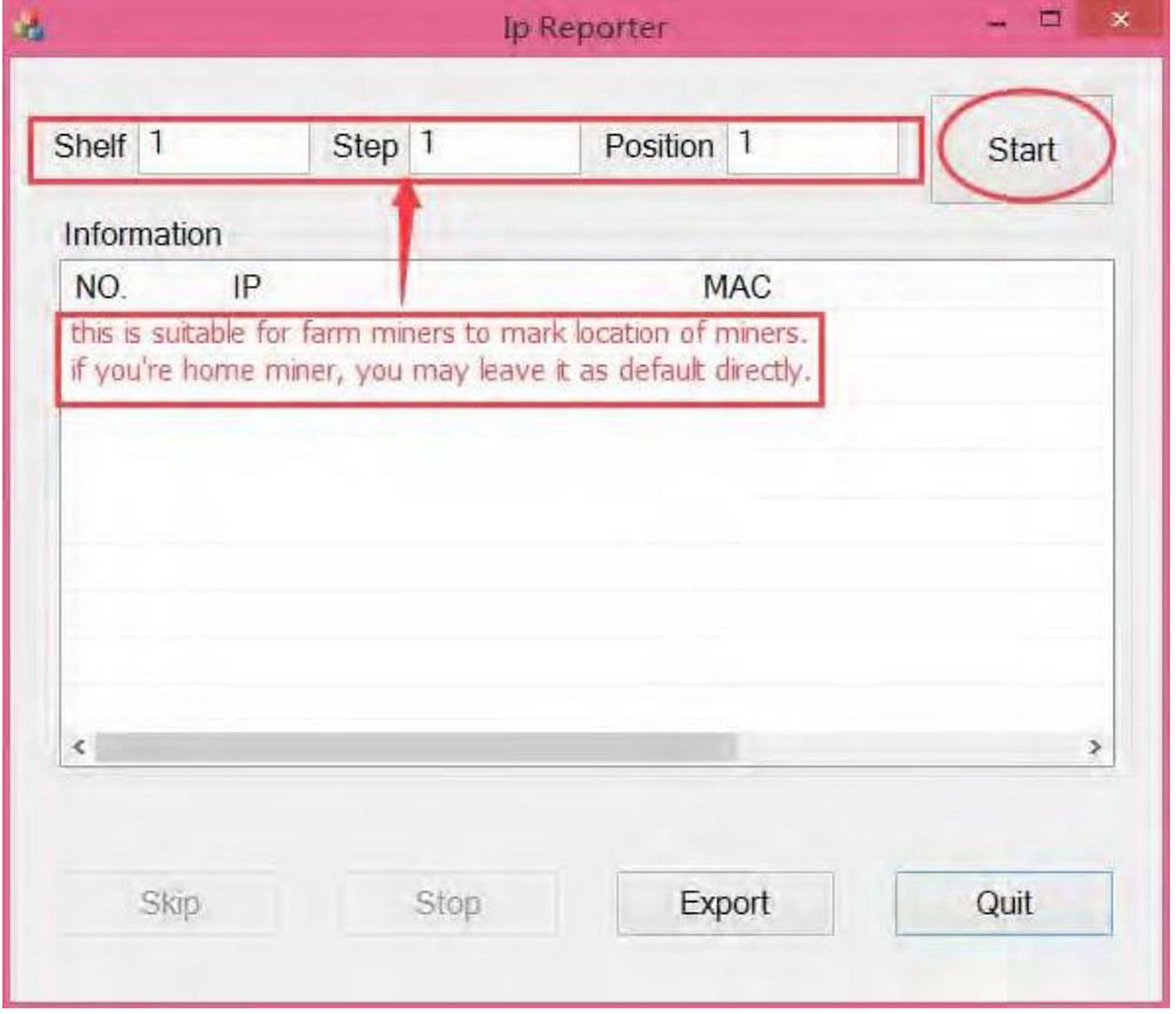

IP Reporter running page

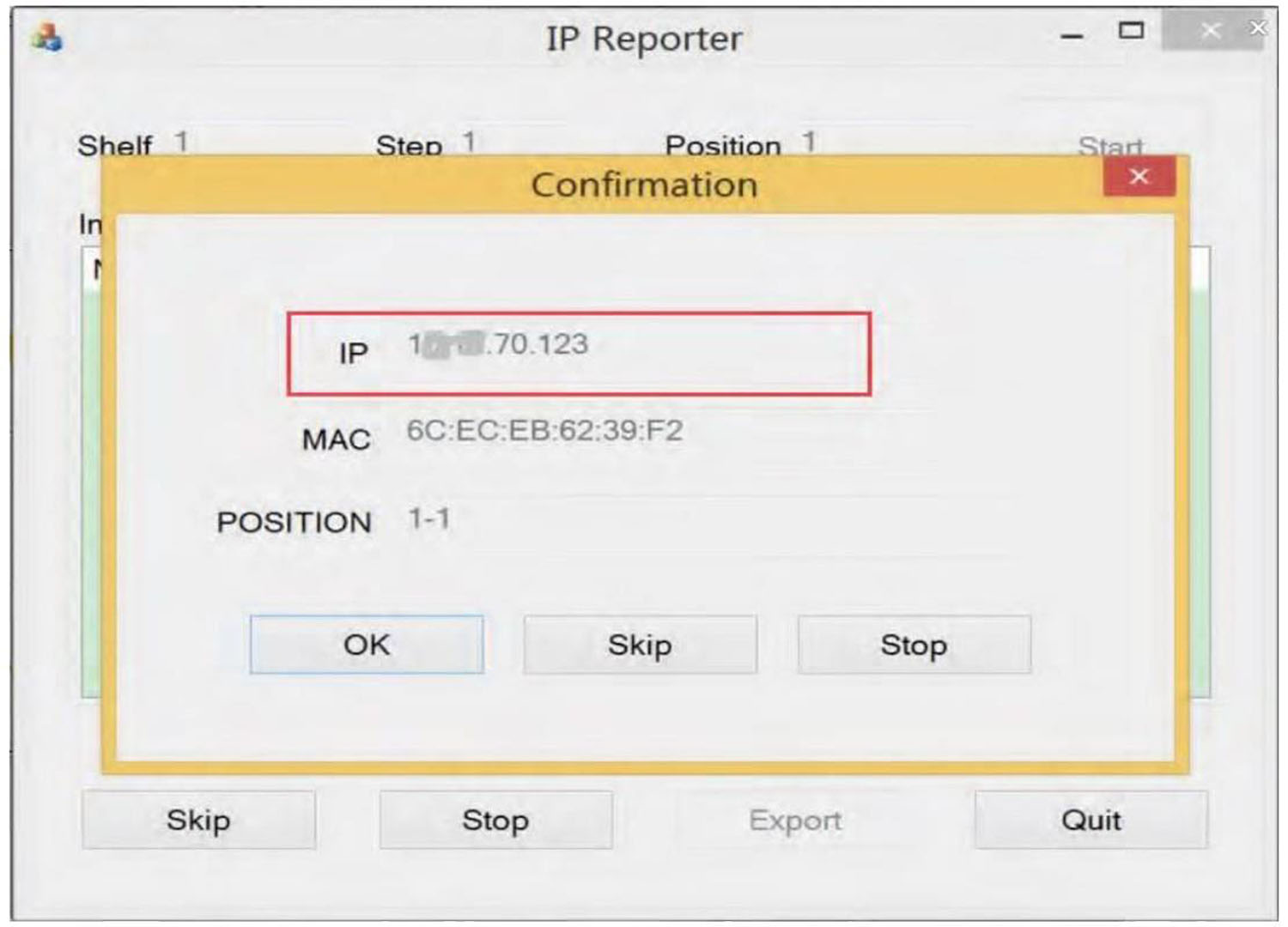

6. On the control board, click the IP Report button. Hold it down until it beeps (about 5 seconds). The IP address will be displayed in a window on your computer screen.

miner IP address

7. In your web browser, enter the IP address provided.

8. Proceed to log in using root for both the username and password.

9. In the Protocol section, you can assign a Static IP address (optional).

10. Enter the IP address, Subnet mask, gateway, and DNS Server.

11. Click “Save.”

12. Click Gateway and DNS Server to learn more about them.

mining pool setting

III. Configuring the Miner

Setting up the Pool

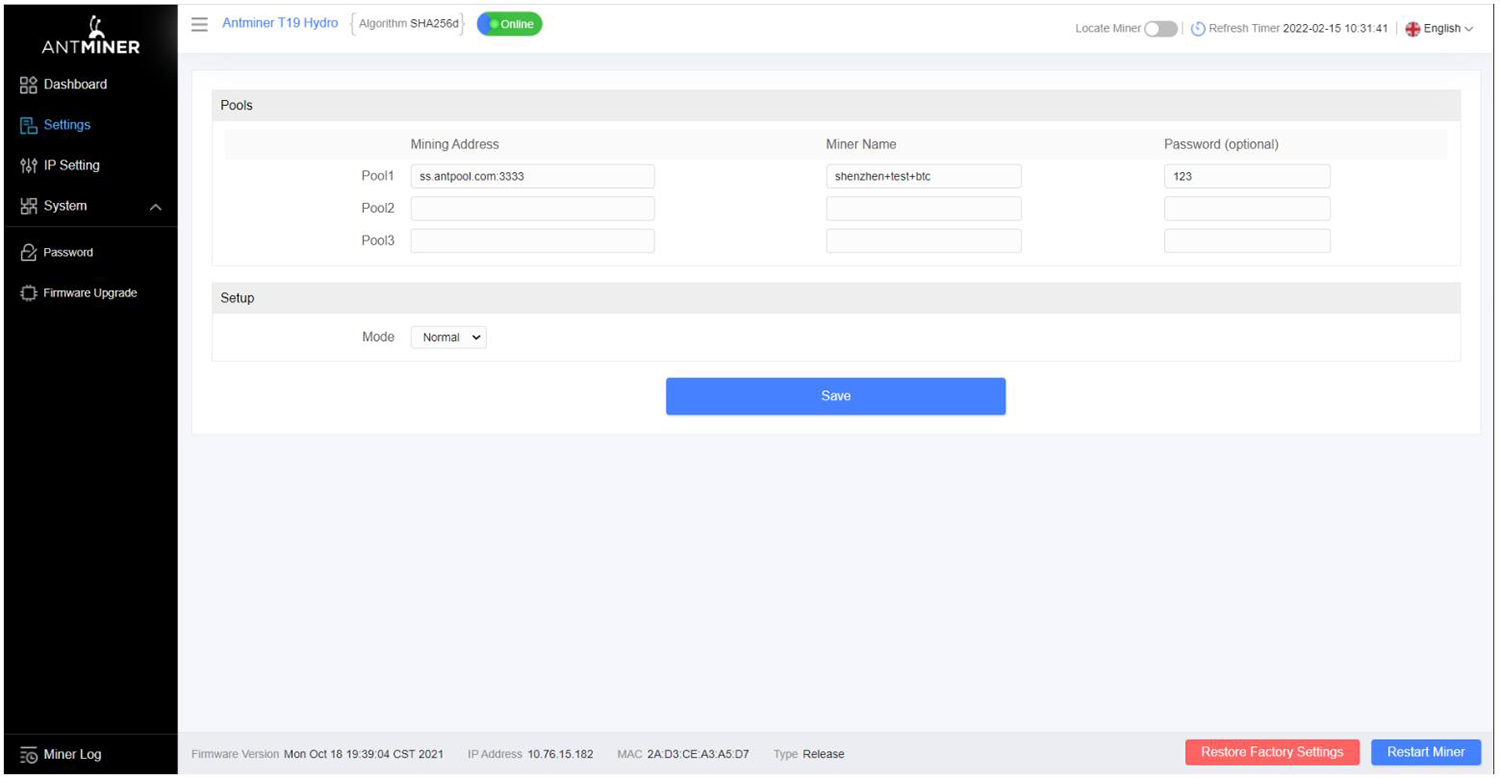

1. Click Setting as below.

configuring the pools

2. Set the options according to the following table.

Option

Description

Mining address

Enter the address of your desired pool.

The T19 Hydro miners can be set up with three mining pools, with decreasing priority from the first pool (pool 1) to the third pool (pool 3). The pools with low priority will only be used if all higher priority pools are offline.

Name

Your worker ID on the selected pool.

Password

The password for your selected worker.

3. Click Save after the configuration.

IV. Monitoring Your Miner

To check the operating status of your miner (taking T19 Hydro 184T as an example):

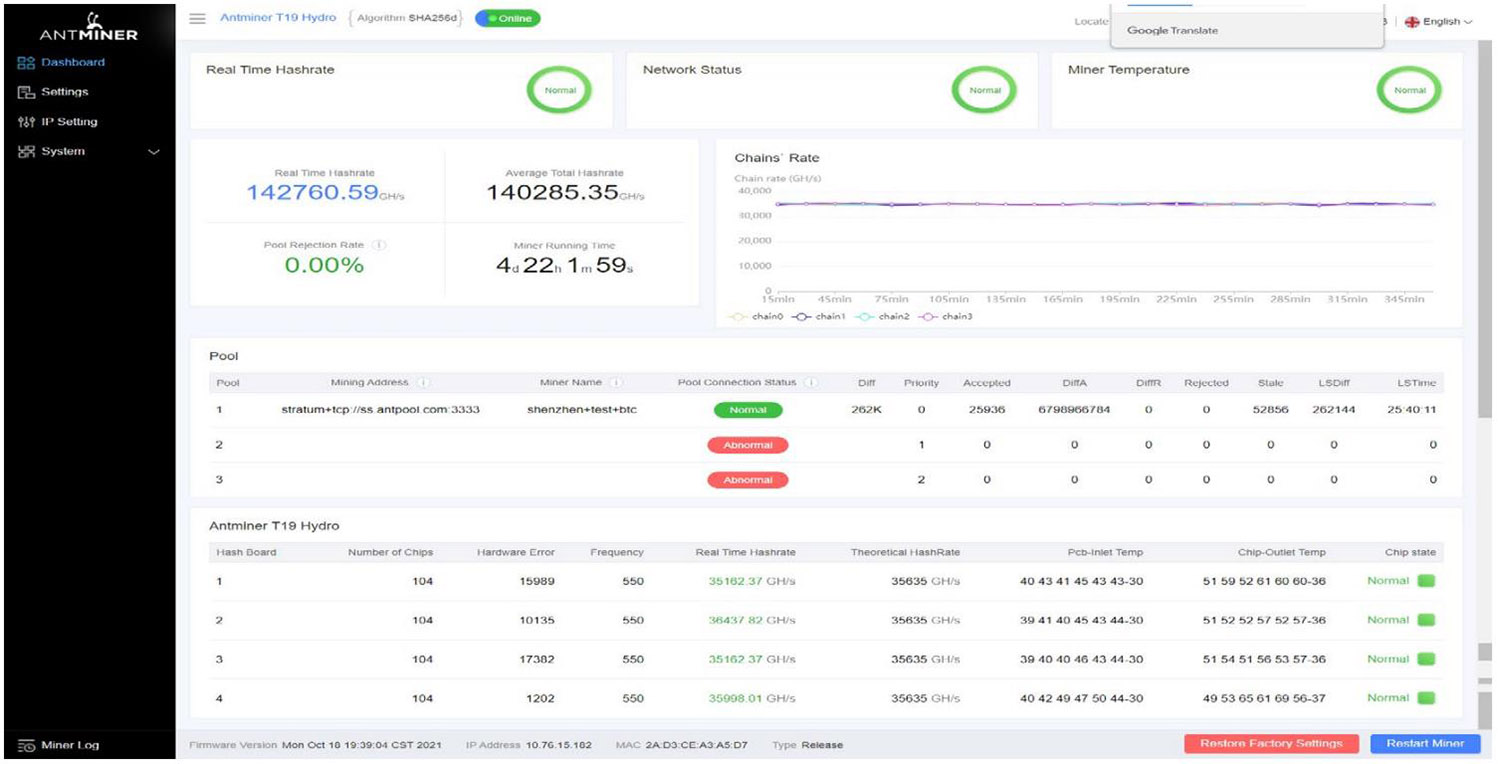

1. Click dashboard marked below to check the miner status.

dashboard page

Note: The frequency of the T19 Hydro miner is fixed with the value 550 MHz. The firmware will stop running when the Temp (PCB) reaches 80℃, or the water temperature is either greater than 65℃ or lower than 20℃; there will be an error message “Fatal Error: Temperature is too high!” shown on the Bottom of the Kernel log page.

2. Monitor your miner according to the descriptions in the following table:

Option

Description

Number of chips

Number of chips detected in the chain.

Frequency

ASIC frequency setting.

Real Hash rate

Real-time hash rate of each hash board (GH/s).

Inlet Temp

Temperature of the inlet (°C).

Outlet Temp

Temperature of the outlet (°C).

ASIC status

One of the following statuses will appear:

The Green Icon - indicates normal

The Red Icon - indicates abnormal

V. Administering Your Miner

1. Checking your firmware version

Check steps:

1) Enter the backstage of your miner, and find the firmware version on the bottom.

2) File System Version displays the date of your miner's firmware. In the example below, the miner is using firmware version 20211018.

miner firmware version

2. Upgrading your system

Make sure that the T19 Hydro miner remains powered during the upgrade process. If power fails before the upgrade is completed, you will need to return it for repair.

Upgrade firmware steps:

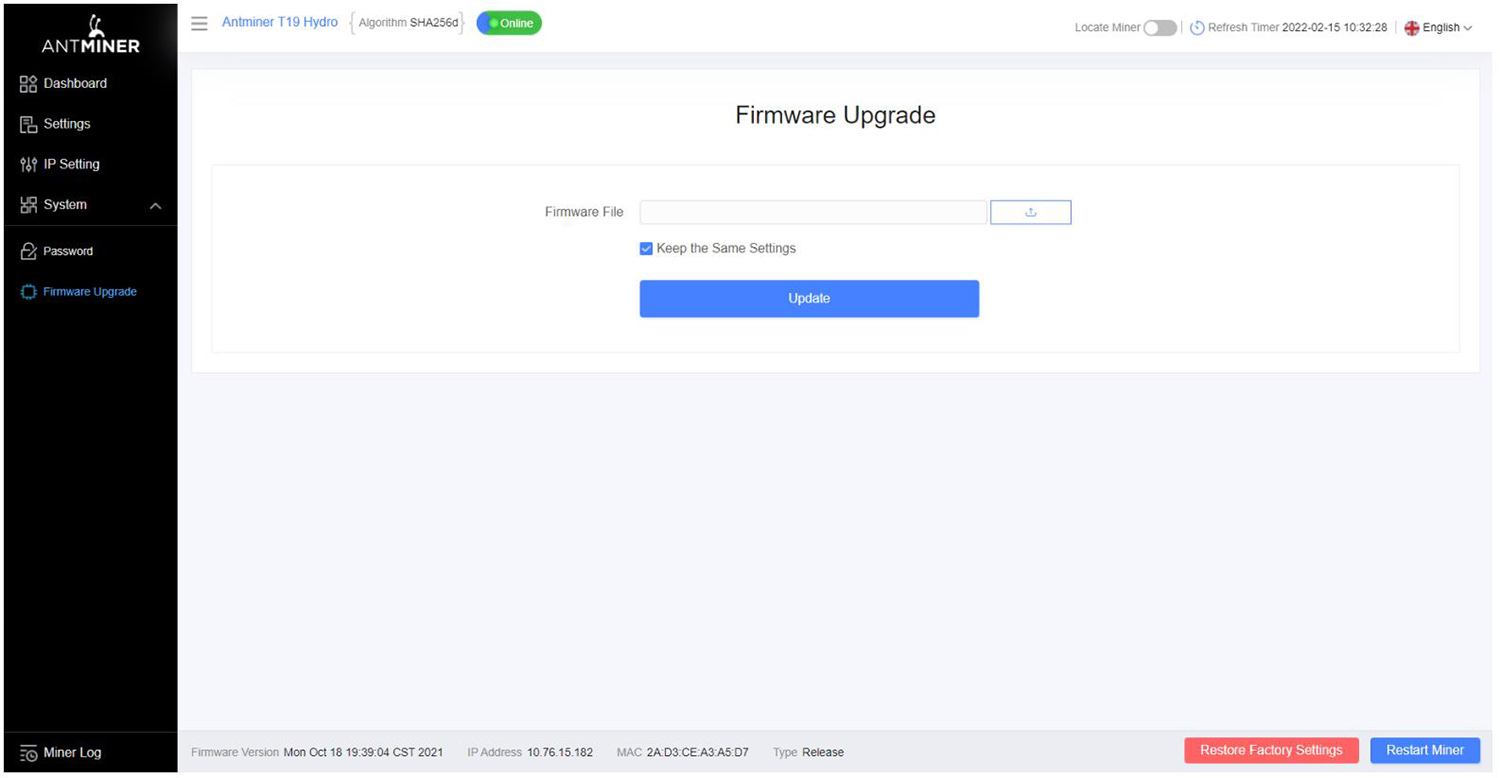

1) In System, click Firmware Upgrade.

upgrade firmware

2) For keep settings:

a. Select “keep settings” to keep your current settings (default).

b. Unselect “keep settings” to reset the miner to default settings.

3) Click the browse button and navigate to the upgrade file. Select the upgrade file, then click Update.

4) When the upgrade is completed, restart the miner, and it will turn to the setting page.

upgrade is completed

5) Click one of the following options:

a. Reboot - to restart the miner with the new firmware.

b. Go Back - to continue mining with the current firmware. The miner will load the new firmware the next time it is restarted.

3. Modifying your password

1) In System, click the Password tab.

2) Set your new password, then click Save.

save miner password

4. Restoring initial settings

1) Turn on the miner and let it run for 5 minutes.

2) Press and hold the Reset button for 10 seconds on the control board.

Resetting your miner will reboot it and restore its default settings. In addition, the red LED will flash once every 15 seconds if the reset is operated successfully.

VI. Environmental Requirements

Please run your miner by the following requirements:

1. Basic environmental requirements:

1) Climatic conditions:

Description

Requirement

Operating Temperature

-20-50℃

Operating Humidity

20-90%RH (non-condensing)

Storage Temperature

-20-70℃

Storage Humidity

5-95%RH(non-condensing)

Altitude

<2000m

2) Site requirements of the miner running room:

a. Please keep the miner running room away from industrial pollution sources:

b. The distance between heavy pollution sources such as smelters and coal mines should be more than 5km.

c. The distance should be more than 3.7km for moderate pollution sources such as chemical, rubber, and electroplating industries.

d. The distance should be more than 2km for light pollution sources such as food and leather processing factories. If unavoidable, the site should be chosen in the perennial upwind direction of the pollution source.

e. Please do not set your location within 3.7km from the seaside or the salt lake. If unavoidable, it should be built as airtight as possible, equipped with air conditioning for cooling.

3) Electromagnetic environmental conditions:

a. Please keep your site away from transformers, high-voltage cables, transmission lines, and high-current equipment; for example, there should be no high-power AC transformers (>10KA) within 20 meters and no high-voltage power lines within 50 meters.

b. Please keep your site away from high-power radio transmitters; for example, there should be no high-power radio transmitters (>1500W) within 100 meters.

2. Other environmental requirements:

The miner running room shall be free of explosive, magnetically conductive, and corrosive dust. The requirements of mechanical active substances are shown below:

1) Requirements of mechanical active substances

Mechanical Active Substance

Requirement

Sand

<= 30mg/m3

Dust (suspended)

<= 0.2mg/m3

Dust (deposited)

<=1.5mg/m2h

2) Requirements of corrosive gas

Corrosive Gas

Unit

Concentration

H2S

ppb

< 3

SO2

ppb

< 10

Cl2

ppb

< 1

NO2

ppb

< 50

HF

ppb

< 1

NH3

ppb

< 500

O3

ppb

< 2

Note: ppb (part per billion) refers to the unit of concentration; 1ppb stands for the volume ratio of part per billion.
