BM1385 ASIC Chip Datasheet

BM1385 ASIC Chip Datasheet

2022/8/6

I. Overview

BM1385 is a kind of high-performance and low-power consumption bitcoin mining ASIC chip.

1. Features:

1) Typical hash rate and power consumption;

Voltage(V)

Hash Rate(GH/S)

Current(A)

Total power(W)

W/GH

0.71

38.75

14.350

10.189

0.263

0.66

32.50

10.760

7.102

0.219

0.60

21.25

6.410

3.846

0.181

2) Customized package;

3) Support the UART communication interface;

4) Support chain mode, Max 256 chips per chain.

2. Applications

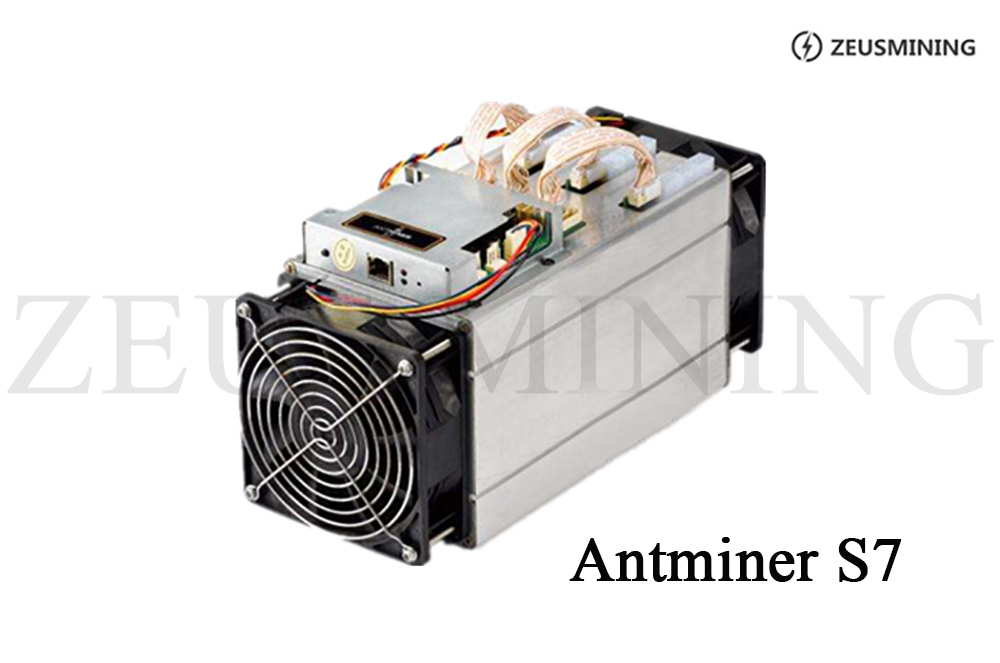

Bitcoin Antminer S7

Antminer S7

II. Pin description

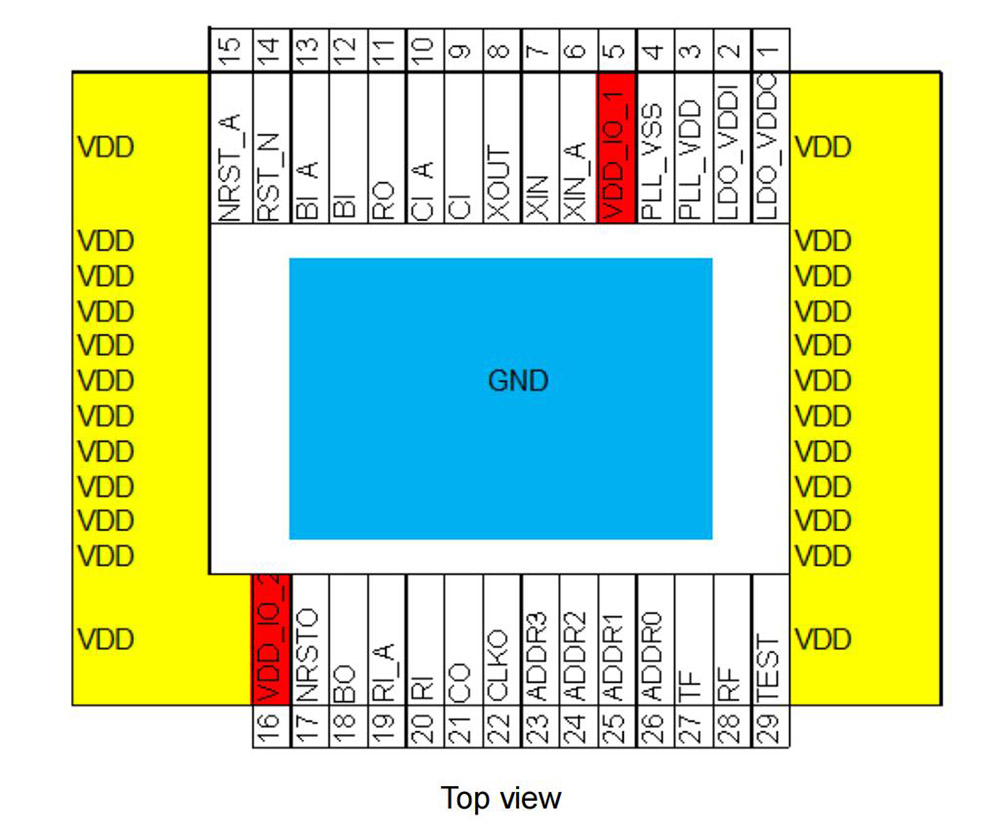

1. Pin diagram

BM1385 ASIC chip pin diagram

2. Signal Description

Name

I/O

Active Level

Description

XIN

I

N/A

Oscillator input

XOUT

O

N/A

Oscillator output

RST_N

I

L

Reset signal

TEST

I

N/A

Internal pull down.

0: Normal mode

1: Test mode

CLKOUT

O

N/A

Clock output

NRSTO

O

L

Reset output

CI

I

N/A

Command Input. Schmitt input.

CO

O

N/A

Command Output

RI

I

N/A

Respond Input. Schmitt input and internal pullup.

RO

O

N/A

Respond Output

BI

I

H

Respond Busy Input. Schmit input and internal pulldown.

BO

O

H

Respond Busy Output

ADDR[3:0]



Address Input. Internal pullup.

RF

O


RO open drain output; Command Rx Flag

TF

O


Respond Tx Flag

PLL_VDD



PLL power (0.9V)

PLL_VSS



PLL ground

LDO_VDD1



LDO power input. Typical 1.8V

LDO_VDDO



LDO power output 0.9V. 1uF external capacitor.

NRST_A



Reset input. Trigger level is (-VDD, VDDPST-VDD)

BI_A



BI input. Trigger level is (-VDD, VDDPST-VDD)

CI_A



CI input. Trigger level is (-VDD, VDDPST-VDD)

XIN_A



XIN input. Trigger level is (-VDD, VDDPST-VDD)

RI_A



RI input. Trigger level is (VDD, VDDPST+VDD)

III. UART description

1. UART protocol

The default baud rate is 115200 when the XIN clock frequency is 25MHz. it can be set via command.

Minimum RX guard time: 1 bit

TX guard time: 2 bit

RX IDLE: 16 bits

Bit order: LSB

2. Work format

Byte0~31 (32bytes)

Byte32~35 (4bytes)

Byte36~39 (4bytes)

Byte40~43 (4bytes)

Byte44~47 (4bytes)

Byte48~50 (3bytes)

Byte51

Byte52~63 (12bytes)

Midstate

Ignore

TM

HCN

SNO

Ignore

Bit[7]

Bit[6:0]

Data2

Ignore

WC

SNO: Start Nonce Offset.

WC: Work Count. It is used to index the input works.

HCN: Hash counting number. When HCN is reached, the hash core will stop hashing.

TM: Ticket Mask. It is used to set the difficulty of return nonce.

3. Work timing

PLLDiv1

PLLDiv2

FBDIV

[11:0]

REFDIV

[5:0]

POSTDIV1

[2:0]

POSTDIV2

[2:0]

Freq(Mhz)

step(Mhz)

0x20040

0x420

32

2

4

1

100.00

0.00

0x28040

0x420

40

s2

4

1

125.00

25.00

0x30040

0x420

48

2

4

1

150.00

25.00

0x38040

0x420

56

2

4

1

175.00

25.00

0x40040

0x420

64

2

4

1

200.00

25.00

0x48040

0x420

72

2

4

1

225.00

25.00

0x50040

0x420

80

2

4

1

250.00

25.00

0x58040

0x420

88

2

4

1

275.00

25.00

0x60040

0x420

96

2

4

1

300.00

25.00

0x68040

0x420

104

2

4

1

325.00

25.00

0x70040

0x420

112

2

4

1

350.00

25.00

0x78040

0x420

120

2

4

1

375.00

25.00

0x80040

0x420

128

2

4

1

400.00

25.00

0x61040

0x320

97

2

3

1

404.17

4.17

0x41040

0x220

65

2

2

1

406.25

2.08

0x62040

0x320

98

2

3

1

408.33

2.08

0x42040

0x220

66

2

2

1

412.50

4.17

0x63040

0x320

99

2

3

1

412.50

4.17

0x64040

0x320

100

2

3

1

416.67

4.17

0x43040

0x220

67

2

2

1

418.75

2.08

0x65040

0x320

101

2

3

1

420.83

2.08

0x44040

0x220

68

2

2

1

425.00

4.17

0x66040

0x320

102

2

3

1

425.00

4.17

0x67040

0x320

103

2

3

1

429.17

4.17

0x45040

0x220

69

2

2

1

431.25

2.08

0x68040

0x320

104

2

3

1

433.33

2.08

0x46040

0x220

70

2

2

1

437.50

4.17

0x69040

0x320

105

2

3

1

437.50

4.17

0x6a040

0x320

106

2

3

1

441.67

4.17

0x47040

0x220

71

2

2

1

443.75

2.08

0x6b040

0x320

107

2

3

1

445.83

2.08

0x48040

0x220

72

2

2

1

450.00

4.17

0x6c040

0x320

108

2

3

1

450.00

4.17

0x6d040

0x320

109

2

3

1

454.17

4.17

0x49040

0x220

73

2

2

1

456.25

2.08

0x6e040

0x320

110

2

3

1

458.33

2.08

0x4a040

0x220

74

2

2

1

462.50

4.17

0x6f040

0x320

111

2

3

1

462.50

4.17

0x70040

0x320

112

2

3

1

466.67

4.17

0x4b040

0x220

75

2

2

1

468.75

2.08

0x71040

0x320

113

2

3

1

470.83

2.08

0x4c040

0x220

76

2

2

1

475.00

4.17

0x72040

0x320

114

2

3

1

475.00

4.17

0x73040

0x320

115

2

3

1

479.17

4.17

0x4d040

0x220

77

2

2

1

481.25

2.08

0x74040

0x320

116

2

3

1

483.33

2.08

0x4e040

0x220

78

2

2

1

487.50

4.17

0x75040

0x320

117

2

3

1

487.50

4.17

0x76040

0x320

118

2

3

1

491.67

4.17

0x4f040

0x220

79

2

2

1

493.75

2.08

0x77040

0x320

119

2

3

1

495.83

2.08

0x50040

0x220

80

2

2

1

500.00

4.17

0x78040

0x320

120

2

3

1

500.00

4.17

0x79040

0x320

121

2

3

1

504.17

4.17

0x51040

0x220

81

2

2

1

506.25

2.08

0x7a040

0x320

122

2

3

1

508.33

2.08

0x52040

0x220

82

2

2

1

512.50

4.17

0x7b040

0x320

123

2

3

1

512.50

4.17

0x7c040

0x320

124

2

3

1

516.67

4.17

0x53040

0x220

83

2

2

1

518.75

2.08

0x7d040

0x320

125

2

3

1

520.83

2.08

0x54040

0x220

84

2

2

1

525.00

4.17

0x7e040

0x320

126

2

3

1

525.00

4.17

0x7f040

0x320

127

2

3

1

529.17

4.17

0x55040

0x220

85

2

2

1

531.25

2.08

0x80040

0x320

128

2

3

1

533.33

2.08

0x56040

0x220

86

2

2

1

537.50

4.17

0x57040

0x220

87

2

2

1

543.75

6.25

0x58040

0x220

88

2

2

1

550.00

6.25

0x59040

0x220

89

2

2

1

556.25

6.25

0x5a040

0x220

90

2

2

1

562.50

6.25

0x5b040

0x220

91

2

2

1

568.75

6.25

0x5c040

0x220

92

2

2

1

575.00

6.25

0x5d040

0x220

93

2

2

1

581.25

6.25

0x5e040

0x220

94

2

2

1

587.50

6.25

0x5f040

0x220

95

2

2

1

593.75

6.25

0x60040

0x220

96

2

2

1

600.00

6.25

0x61040

0x220

97

2

2

1

606.25

6.25

0x62040

0x220

98

2

2

1

612.50

6.25

0x63040

0x220

99

2

2

1

618.75

6.25

0x64040

0x220

100

2

2

1

625.00

6.25

0x65040

0x220

101

2

2

1

631.25

6.25

0x66040

0x220

102

2

2

1

637.50

6.25

0x67040

0x220

103

2

2

1

643.75

6.25

0x68040

0x220

104

2

2

1

650.00

6.25

0x69040

0x220

105

2

2

1

656.25

6.25

0x6a040

0x220

106

2

2

1

662.50

6.25

0x6b040

0x220

107

2

2

1

668.75

6.25

0x6c040

0x220

108

2

2

1

675.00

6.25

0x6d040

0x220

109

2

2

1

681.25

6.25

0x6e040

0x220

110

2

2

1

687.50

6.25

0x6f040

0x220

111

2

2

1

693.75

6.25

0x70040

0x220

112

2

2

1

700.00

6.25

0x71040

0x220

113

2

2

1

706.25

6.25

0x72040

0x220

114

2

2

1

712.50

6.25

0x73040

0x220

115

2

2

1

718.75

6.25

0x74040

0x220

116

2

2

1

725.00

6.25

0x75040

0x220

117

2

2

1

731.25

6.25

0x76040

0x220

118

2

2

1

737.50

6.25

0x77040

0x220

119

2

2

1

743.75

6.25

0x78040

0x220

120

2

2

1

750.00

6.25

0x79040

0x220

121

2

2

1

756.25

6.25

0x7a040

0x220

122

2

2

1

762.50

6.25

0x7b040

0x220

123

2

2

1

768.75

6.25

0x7c040

0x220

124

2

2

1

775.00

6.25

0x7d040

0x220

125

2

2

1

781.25

6.25

0x7e040

0x220

126

2

2

1

787.50

6.25

0x7f040

0x220

127

2

2

1

793.75

6.25

0x80040

0x220

128

2

2

1

800.00

6.25

0x41040

0x120

65

2

1

1

812.50

12.50

0x42040

0x120

66

2

1

1

825.00

12.50

0x43040

0x120

67

2

1

1

837.50

12.50

0x44040

0x120

68

2

1

1

850.00

12.50

0x45040

0x120

69

2

1

1

862.50

12.50

0x46040

0x120

70

2

1

1

875.00

12.50

0x47040

0x120

71

2

1

1

887.50

12.50

0x48040

0x120

72

2

1

1

900.00

12.50

0x49040

0x120

73

2

1

1

912.50

12.50

0x4a040

0x120

74

2

1

1

925.00

12.50

0x4b040

0x120

75

2

1

1

937.50

12.50

0x4c040

0x120

76

2

1

1

950.00

12.50

0x4d040

0x120

77

2

1

1

962.50

12.50

0x4e040

0x120

78

2

1

1

975.00

12.50

0x4f040

0x120

79

2

1

1

987.50

12.50

0x50040

0x120

80

2

1

1

1000.00

12.50

4. Nonce respond format

4bytes

Bit[7]

Bit[6:0]

Nonce

1

WorkCount

5. Configuration description

Support two modes:

a. FIL (Fixed Input Length)

b. VIL (Variable Input Length)

When the system reset (RST_N is low), if ADDR3 is HIGH, and it is FIL mode; else, it is VIL mode.

1) Command

ALL

CMD[6:0]

command

0/1

1

Set Address

1

2

SetPLLDivider2

0/1

4

Get Status

1

5

Chain Inactive

0/1

6

Set Baud OPS

1

0x7

Set PLL Divider1

0/1

0x8

Set Config. Only valid in VIL mode.

2) Set Address

FIL:

31

30:24

23:16

15:8

7:6

[5:0]

ALL

CMD

ADDR

Reserved

Reserved

CRC5

VIL:

Byte0

Byte1

Byte2

Byte3

Byte4

7:5

4

3:0

7:0

7:0

7:0

7:5

4:0

TYPE=2

ALL=0

CMD

Length=5

ADDR

Reserved

Reserved

CRC5

3) Chain Inactive

FIL:

31

30:24

23:16

15:8

7:5

4:0

ALL

CMD

Reserved

Reserved

Reserved

CRC5

VIL:

Byte0

Byte1

Byte2

Byte3

Byte4

7:5

4

3:0

7:0

7:0

7:0

7:5

4:0

TYPE=2

ALL=1

CMD

Length=5

Reserved

Reserved

Reserved

CRC5

4) Set PLL Divider

Set PLL Divider1：

31

30:24

23

23:12

11

10:5

4:0

Reserved

CMD

Reserved

FBDIV[11:0]

Reserved

REFDIV[5:0]

CRC5

Set PLL Divider2：

31

30:24

23:16

15:12

10:8

7:5

4:0

ALL

CMD

ADDR

Reserved

POSTDIV1[2:0]

POSTDIV2[2:0]

CRC5

FBDIV: PLL feedback divider, range from 60 to 160.

REFDIV: PLL reference clock divider, range from 1 to 63.

POSTDIV1: PLL post divide 1, range 1 to 7.

POSTDIV2: PLL post divide 2, range 1 to 7. Total post divide is POSTDIV1* POSTDIV2. The value of POSTDIV1 should ALWAYS be greater than or equal to POSTDIV2.

set PLL divider

5) Get Status

31

30:24

23:16

15:8

7:5

4:0

ALL

CMD

ADDR

REGADDR

Reserved

CRC5

Register Respond format:

4bytes

Bit[7:5]

Bit[4:0]

Read data of register

000

CRC5

6) Set Config

Only valid in VIL mode.

Byte0

Byte1

Byte2

Byte3

Byte4~7

Byte8

7:5

4

3:0

7:0

7:0

7:0


7:5

4:0

TYPE=2

ALL

CMD

Length=9

ADDR

REGADDR

REGDATA

Reserved

CRC5

IV. Electrical character

1. Absolute maximum rating

Symbol

Parameter

Max value

Unit

VDD

Core Voltage

1.2

V

VCC

IO Voltage

1.98

V

PLL_DVDD

PLL Digital power

1.2

V

PLL_AVDD

PLL analog Power

1.92

V

TSTG

Storage Temperature

-65~150

C

2. Recommended operation conditions

Symbol

Parameter

Min.

Typ.

Max.

Unit

VDD

Core Voltage

0.60

0.66

0.8

V

IO_VDD

IO Voltage

1.62

1.8

1.98

V

PLL_VDD

PLL Digital power

0.81

0.9

0.99

V

TOPT

Operation Temperature

0

25

125

C

3. DC characters

Symbol

Parameter

Min.

Typ.

Max.

Unit

VIL

Input Low Voltage

-0.3


0.63

V

VIH

Input High Voltage

1.17


1.98

V

VOL

Output Low Voltage



0.45

V

VOH

Output High Voltage

1.35



V

IL

Input Leakage Current



±10

uA

VT

I/O threshold point

0.81

0.89

0.97

V

VT+

Schmitt input low to high threshold pint

0.95

1.03

1.10

V

VT-

Schmitt input high to low threshold pint

0.64

0.75

0.86

V

RPU

I/O internal pull-up resistor

47K

69K

106K

Q

RPD

I/O internal pull-down resistor

49K

85K

159K

Q

ICC(VCC)

Supply current of VCC


10


mA

ICC(PLL)

Supply current of PLL_DVDD and PLL_AVDD


4


mA

CBIN

Input pin capacitance


10


pF

CBOUT

Output pin capacitance


10


pF

NOTICE
This is an original piece. Reproduction in whole or part without written permission is prohibited.

Articles in this section

0
About products purchase, please contact our sales manager:
[email protected]

About miner repair and after-sale issues, please contact the repair manager email:
[email protected]

For business cooperation, please contact:
[email protected]

COMPLAINTS & SUGGESTIONS
If you have any dissatisfaction during the transaction or have valuable suggestions for us, please contact us via this email address:
[email protected]
Attention!

Recently, many companies claiming to be mining companies imitate us and say that they are related to us, or that they are our branch companies, which has caused customers to be deceived. Please be careful not to believe any impostors, please check our correct contact information and beware of being deceived getting scammed, and losing money.
please check our right contact way: Here

CLOSE
